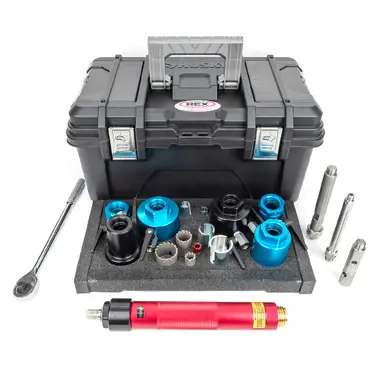

WHEELER-REX 8209 – Hot Tapping System 3/4″-2″ CTS, Flare/Compression Plastic, Ductile Iron, Cast

WHEELER-REX 8209 Hot Tapping System 3/4″ – 2″ CTS, Flare/Compression Plastic, Ductile Iron, Cast Iron

The best way to drill holes in pressurized water lines without having to shut the water off or drain the system down. The WHEELER-REX 8209 kit is WHEELERREX’s most complete kit, including CTS Flare and Compression adapters that will allow you to make 3/4″ – 2″ connections. Light weight and easy to use, all WHEELER-REX hot tap kits are hand operated and can be set-up and operated by one person. The unit can be easily assembled and disassembled and stores in a heavy-duty tool box that features foam inserts that will protect your tool during transportation and on the job site. Safe for water lines up to 250 PSI.

*Please note the system attaches through a corporation stop and/or full-port ball valve and saddle on your pipe, WHEELER-REX does not provide stops or saddles*

Includes:

802050 3/4″ CTS Adapter

802052 1″ CTS Adapter

802056 1-1/2″ CTS Adapter

802058 2″ CTS Adapter

802060 1-1/2″ Adapter for Mueller 110

802061 2″ Adapter for Mueller 110

904065 3/4″ Cutter Shell CI/DI

904066 1″ Cutter Shell CI/DI

904068 1-1/2″ Cutter Shell CI/DI

904069 2″ Cutter Shell CI/DI

5800 3/4″ Cutter Shell Plastic

5801 1″ Cutter Shell Plastic

802084 1-1/2″ Cutter Shell Plastic

802085 2″ Cutter Shell Plastic

701440 1-1/2″ & 2″ Arbor Assembly

6515 Ratchet Male 1/2″ SQ Drive

Other Hot Tapping Kits:

MODEL#	8100	8102	8200	8201	8202	8203	8204	8205	8206	8209	8300
Pipe Sizes	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″
1″	1″	1″	1″	1″	1″	1″	1″	1″	1″	1″
	1-1/4″
	1-1/2″			1-1/2″		1-1/2″		1-1/2″	1-1/2″
	2″			2″		2″		2″	2″
Adapter Threads											BSPT
NPT	NPT
		CTS Flare	CTS Flare	CTS Flare	CTS Flare	CTS Flare	CTS Flare	CTS Flare	CTS Flare
									Compression
Pipe Materials	Steel	Steel	Steel								Steel
Copper	Copper	Copper								Copper
			Plastic	Plastic			Plastic	Plastic	Plastic
					Cast Iron	Cast Iron	Cast Iron	Cast Iron	Cast Iron
					Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron
