Safewaze 023-4105 – Shuttle Anchor

Safewaze 023-4105 – Shuttle Anchor

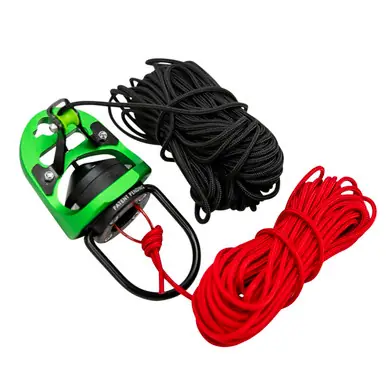

The Shuttle Anchor is a lightweight, semi-permanent overhead anchoring solution designed to make managing SRLs, lanyards and VLLs easier, safer, and more efficient. Using a simple pull-cord system, workers can raise and lower fall arresters from the ground, eliminating the need to climb or leave equipment exposed to weather. Its premium aluminum and stainless-steel construction provides long-lasting durability, while optional mounting brackets allow the Shuttle Anchor to be used on a wide range of structures.

Key Features

Semi-permanent anchor point for quick, repeatable access without reinstalling

Raise and lower SRLs, lanyards and VLLs from the ground to reduce climbing and protect equipment from weather

Lightweight, compact design makes it easy to carry and set up to any existing anchor point

Corrosion-resistant aluminum and stainless steel for long-lasting performance in harsh environments

Includes a Shuttle Bag (025-9106) to keep excess tagline contained and reduce snags, plus a magnetic carabiner for quick attachment to any surface

Connects to existing anchor points via carabiner for quick installation (carabiner not included)

Option to bolt to rated structure using compatible bracket for secure, fixed installations (Shuttle Anchor: Bolt-on Bracket (024-4121), sold separately)

Option to bolt to I-Beams using compatible mount for secure, fixed installations (Shuttle Anchor: I-Beam Mount (024-4124), sold separately)

Specifications

Product Specification 1	Working Load Limit: 1,000 lbs. (453.6 kg)
Materials	Steel, stainless steel, aluminum and nylon
Attachment Points	1 D-ring
Minimum Breaking Strength	5,000 lbs. (22 kN)
ANSI Weight Capacity	130-310 lbs. (59-141 kg)
OSHA Weight Capacity	Up to 420 lbs. (191 kg)
ANSI Standards	Z359.18-2017 Type A
OSHA Standards	1926.502, 1910.140, 1910.66
