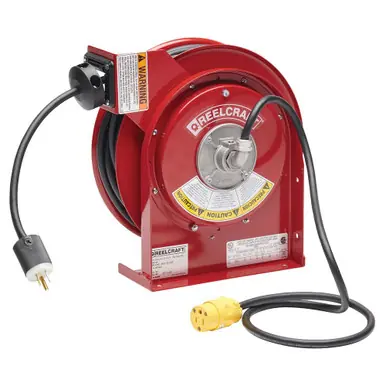

Reelcraft Series L 4000 NEMA 5-15P reverse plug power cord reel includes a 13 amp outlet straight blade plug. The reel is supplied with a 4-5 foot pigtail that includes a NEMA 5-15R inlet single receptacle. For indoor, non-weather tight applications only. *UL/CSA approved*

35 ft. 16/3 SJEOOW cord with an outlet straight blade plug included

Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel

A heavy duty collector ring assures highest conductivity

The reliable speed latch allows for positive locking of the spool in two positions per rotation

Individually powder-coated steel components provide maximum protection from premature corrosion

Robotically welded steel base offers maximum strength and consistent quality

Made in the USA

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

L-4035-163-3-RP Parts List (34 Items) ▼

Item #	# Req.	Part Number
1	1	261140-1-C	Pipe Fitting 90° Elbow / Conduit Box & Cover
2	1	300006	Set Screw 3/8-16 x 1/2"
3	1	S400103	Spring Case Assembly
4	1	S261360	Spring Case Stud
5	1	S400030	Drive Spring Assembly
6	1	400101	Base Assembly
7	21	S82-15	Nyloc Nut 10-32
8	2	300002	Screw 10-32 x 1/2"
9	1	300001	Screw 10-32 x 3/8"
10	1	S400107	Guide Arm Assembly
11	1	S400021	Latch Bumper
12	1	S32-136	Screw 10-24 x 3/8"
13	1	S400018	Latch Plate Spring
14	1	S602348	Main Shaft Kit
15	1	S400012	Latch Bushing
16	1	S400109	Latch Plate Assembly
17	1	300035	Screw 10-32 x 1"
18	2	300034	Spacing Washer
19	1	S263383	Ratchet Arbor
20	1	400006	Sheave Disc
21	1	260501	Strain Relief
22	1	600194	Sheave Assembly
23	3	902016	Lock Washer
24	3	S2-42	Hex Head Screw 1/4-20 x 5/8"
25	1	300031	Snap Ring 1"
26	1	261577	Adapter Plate
27	1	S602296	Collector Ring Assembly
28	1	600283	Grounding Cord Assembly
29	1	262371-1	Cord Clamp
30	1	S140-13	Snap Ring
31	1	261723	Cover
33	1	602643	Inlet Cord Assembly Receptacle
38	1	602626-35	Outlet Cord Assembly Plug
41	1	600193	Bumper Stop Assembly

Weight	26 lbs
Series	L 4000
Cord Ending	Single Plug
AWG	16
Cord/Cable Length	35′
Volts	125
Amps	13
Conductors	3
Cord/Cable Included	Yes
Type	SJTOW
UPC	699567024668
Carton Dimensions	17.5″ x 16″ x 12″

Weight	26 lbs
Series	L 4000
Cord Ending	Single Plug
AWG	16
Cord/Cable Length	35′
Volts	125
Amps	13
Conductors	3
Cord/Cable Included	Yes
Type	SJTOW
UPC	699567024668
Carton Dimensions	17.5″ x 16″ x 12″
