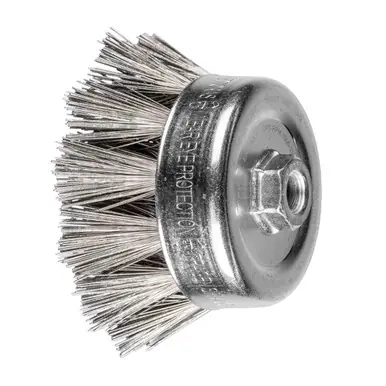

PFERD 84348 – 4″ Diamond Coated Wire Cup Brush 270 grit, 5/8-11 Arbor

PFERD 84348 – 4″ Diamond Coated Wire Cup Brush 270 grit, 5/8-11 Arbor

PFERD power and maintenance brushes are used where exacting demands are placed on efficiency and outcome of surface conditioning, deburring, and cleaning operations.

Industrial grade diamond grit is electroplated onto knotted stainless steel wire strands. Designed for scale and surface contaminant removal on localized and hard-to-reach areas.

This brush features extended knot flag length, providing flexibility on uneven surfaces and complex geometries. This brush features knots that are twisted approximately 75% of the trim length. The loosely-twisted knots cover a larger surface area and are ideal for heavy-duty cleaning and surface conditioning on uneven surfaces. For weld cleaning, weld spatter removal.

Materials that can be worked:

Aluminium	Nickel- or titanium-based superalloys	Stainless steel (INOX)
Bronze	Nickel-based alloys (e. g. Inconell and Hasteloy)	Titanium
Cobalt-based alloys	Other non-ferrous metals	Titanium alloys
Hard non-ferrous metal	Soft non-ferrous metal
High-temperature-resistant materials	Soft titanium alloys (tensile strength 500 N/mm²)

Applications:

Deburring

Descaling

Cleaning

Removing oxide layers

Drive types:

Angle grinder

Specifications:

Diameter	4
Thread size	5/8-11
No. of knots	24 pcs.
Trim length	1-1/2
Grit size	270 (coarse)
Recom. RPM from	1000 RPM
Recom. RPM to	2800 RPM
Max. RPM	11000 RPM
Packing unit	1 pcs.
EDP number	84348
