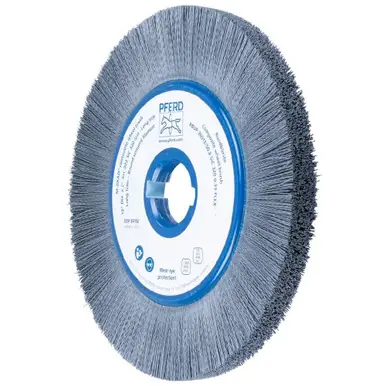

PFERD 84150 12″ OD M-BRAD composite wheel brush, narrow face .022″/320 grit SiC, 2″ Keyed AH, 2-3/8″

PFERD 84150 12″ OD M-BRAD composite wheel brush, narrow face .022″/320 grit SiC, 2″ Keyed AH, 2-3/8″ trim

PFERD power and maintenance brushes are used where exacting demands are placed on efficiency and outcome of surface conditioning, deburring, and cleaning operations.

,

M-BRAD® nylon abrasive filament makes this product ideal for aggressive deburring and other surface conditioning applications. Developed specially for industrial use on stationary machines.

Materials that can be worked:

Aluminium

Cast iron

Duroplastics

Other non-ferrous metals

Stainless steel (INOX)

Steel, cast steel

Thermoplastics

Wood

Applications:

Roughening

Deburring

Cleaning

Structuring (matt finishing, brush matting and satin finishing)

Drive Type:

Robot applications

Stationary machines

Machine tool

Specifications:

Filament-material	M-BRAD® nylon abrasive filament, silicon carbide SiC
Diameter	12
Arbor hole	2
Trim length	2-3/8
Face width	1
Width on arbor	1
Keyway dimensions	1/2 x 1/4
Filament geometries	round crimped
Filament dimensions	.022/320
Recom. RPM from	500 RPM
Recom. RPM to	800 RPM
Max. RPM	1800 RPM
Adapter style	C
Packing unit	1 pcs.
EDP number	84150
