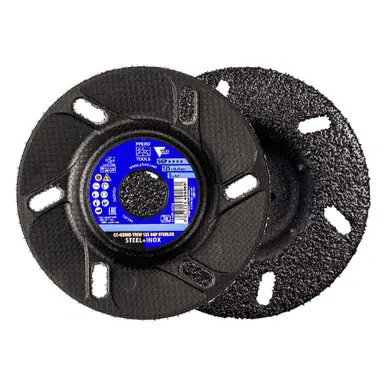

PFERD 64198127 – Grinding disc, CC-GRIND VIEW, 5″ x 7/8, SGP STEELOX VICTOGRAIN, Ceramic, 2 Pac

PFERD 64198127 – Grinding disc, CC-GRIND VIEW, 5″ x 7/8, SGP STEELOX VICTOGRAIN, Ceramic, 2 Pac

Special Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency. The innovative CC-GRIND VIEW grinding disc combines a unique design with VICTOGRAIN, one of the most effective, precision-formed abrasives in the world. The viewing pane enables users to work precisely and monitor their work process. Designed for surface grinding, chamfering, deburring and work on weld seams.

Applications

Chamfering

Deburring

Step-by-step fine grinding

Leveling

Surface grinding

Work on weld seams

Features

The viewing panes on the CC-GRIND VIEW provide a clear view of the grinding process for maximum control during grinding.

Users can easily maintain an optimal contact angle based on the sparking visible through the viewing pane.

Significantly more ergonomic than a grinding wheel: Noise, vibrations and dust are significantly reduced.

Fiberglass-reinforced plastic backing pad facilitates a robust, reliable application.

Ultimate aggressive performance for fast results.

In contrast to flap discs, they can achieve flat surfaces due to their dimensional stability.

In contrast to fibre discs, CC-GRIND VIEW does not deform, even under extreme climatic conditions, and is considerably more robust in heavy-duty use.

Materials

Case-hardened steels

Stainless steel (INOX)

Steel

Tool steels

Wood

Recommendations

For optimum results, use with a flat contact angle.

Only use the face of the disc, not suitable for peripheral grinding (on edge).

Specifications

Product Type	Cut-off wheels, flap discs and grinding wheels
Drive Type	Angle grinder, Cordless angle grinder
External Diameter	5″
Hole Diameter	0.875″
Abrasive Material	VICTOGRAIN
Shape	CC-GRIND®-ROBUST
Mounting System	center hole
Max RPM	12200 RPM
Weight	0.172 lb
