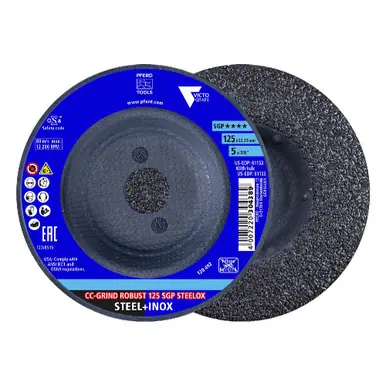

PFERD 64198126 – Grinding disc, CC-GRIND-ROBUST, 5″ x 7/8, SGP STEELOX VICTOGRAIN, Ceramic, 2 P

PFERD 64198126 – Grinding disc, CC-GRIND-ROBUST, 5″ x 7/8, SGP STEELOX VICTOGRAIN, Ceramic, 2 P

Special Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency. With the CC-GRIND-ROBUST, PFERD TOOLS offers a modern, high-performance and ergonomic alternative to conventional grinding wheels, flap and fibre discs. Grinding disc with precision-molded, triangular high-performance abrasive VICTOGRAIN for steel and stainless steel (INOX). Maximum grinding performance and outstanding service life. VICTOGRAIN abrasive material is used to make some of the most effective grinding products in the world. PFERD TOOLS triangular, precision-formed grain achieves ultimate performance. The VICTOGRAIN abrasive grain triangles are identical in shape and size and their cutting edges are applied to the workpiece at the optimum angle, meaning the grain needs very little energy to penetrate the workpiece. As a result, the user experiences superior productivity due to extremely high stock removal, a long service life, and reduced heat build-up in the workpiece.;Each VICTOGRAIN abrasive grain triangle is firmly fixed on one of its sides to the backing material. Due to the slim design, VICTOGRAIN offers an extremely large chip space for maximum cutting efficiency. The structure of the triangular VICTOGRAIN is specially engineered to maximize results. The very fine crystalline structure ensures optimal wear characteristics as sharp cutting edges are always exposed, with the minimum amount of abrasive breaking off from the triangle. By combining all these properties together, users benefit from optimal, consistent performance, cool grinding and an extremely long service life with uniform workpiece surface roughness.

Applications

Chamfering

Deburring

Step-by-step fine grinding

Surface grinding

Work on weld seams

Features

Ultimate aggressive performance for fast results.

Fiberglass-reinforced plastic backing pad facilitates a robust, reliable application.

Significantly more ergonomic than a conventional grinding wheel: Noise, vibrations and dust are significantly reduced. A considerably superior surface quality is also produced.

In contrast to flap discs, they can achieve flat surfaces due to their dimensional stability.

In contrast to conventional fibre discs, CC-GRIND-ROBUST does not deform, even in extreme climates, and is considerably more robust in heavy-duty use.

The use of a special clamping flange set is not necessary due to the design.

Easily trimmable product.

Although the VICTOGRAIN products only come with a single coating of abrasive grit, they offer an outstanding service life which exceeds that of conventional grinding wheels and many flap discs.

Materials

Case-hardened steels

Stainless steel (INOX)

Steel

Tool steels

Wood

Recommendations

Trim the CC-GRIND-ROBUST on sharp metal edges, files, or with cutting inserts.

Trimming should only be done at a 45° contact angle of.

Press the disc carefully on to the workpiece and increase the pressure until a chip is formed. Keep the pressure until the disc has been trimmed to the desired dimension.

For optimum results, use with a flat contact angle.

Only use the face of the disc, not suitable for peripheral grinding (on edge).

Choose the CC-GRIND-ROBUST SGP STEELOX for fast results.

Specifications

Product Type	Cut-off wheels, flap discs and grinding wheels
Drive Type	Angle grinder, Cordless angle grinder
External Diameter	5″
Hole Diameter	0.875″
Abrasive Material	VICTOGRAIN
Shape	CC-GRIND®-ROBUST
Mounting System	center hole
Max RPM	12200 RPM
Weight	0.181 lb
