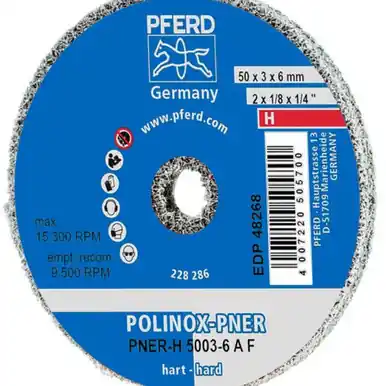

PFERD 48268 2″ x 1/8″ Unitized Wheel 1/4″ A.H., A/O Fine (H) 8AM (10pk)

PFERD 48268 2″ x 1/8″ Unitized Wheel 1/4″ A.H., A/O Fine (H) 8AM

PFERD offers a wide range of coated and non-woven abrasive tools for face-down grinding, belt grinding, peripheral grinding, surface conditioning, polishing, and much more.

POLINOX unitized wheels and discs consist of multiple heavily compressed, non-woven layers, which are bonded together by a special grain/resin system. This particular bond results in non-woven products with a very good surface finish, high stock removal rate and long service life.

These properties are particularly apparent when deburring, blending, finishing and polishing soft metals, alloyed and high-alloy steels, in addition to titanium alloys.

Type for straight grinders, flexible shafts and bench grinders: Ideal for work on smaller surfaces. Type for variable-speed angle grinders and fillet weld grinders: They are ideal for work on fillet welds and very hard-to-reach slots or indentations.Materials that can be worked:

Aluminium	Hard non-ferrous metal	Steel materials with a hardness over 54 HRC
Brass	Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)	Steel, cast steel
Bronze	High-temperature-resistant materials	Steels up to 1,200 N/mm² (< 38 HRC)
Cast steel	Nickel-based alloys (e. g. Inconell and Hasteloy)	Thermoplastics
Cobalt-based alloys	Other non-ferrous metals	Titanium
Copper	Soft non-ferrous metal	Titanium alloys
Fibre-reinforced duroplastics (GRP, CRP)	Stainless steel (INOX)	Zinc

Applications:

Roughening

Deburring

Surface work

Cleaning

Structuring (matt finishing, brush matting and satin finishing)

Fine grinding in multiple steps

Drive types:

Flexible shaft drive

Straight grinder

Specifications:

Diameter	2
Height	1/8
Grit size	fine
Recom. RPM from	9500 RPM
Max. RPM	15300 RPM
Abrasive	A
Density	H (hard)
Spec.	8AM
Bore	1/4
Packing unit	10 pcs.
EDP number	48268
