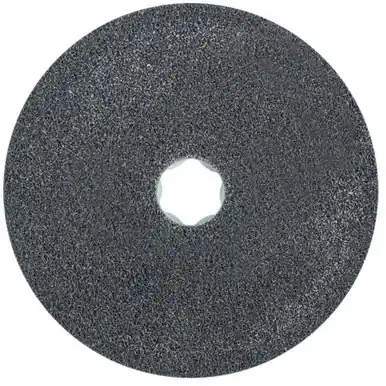

PFERD 48170 COMBICLICK Unitized Disc 5″ Silicon Carbide Fine Med.-Soft (5pk)

PFERD 48170 COMBICLICK Unitized Disc 5″ Silicon Carbide Fine Med.-Soft

PFERD offers a wide range of coated and non-woven abrasive tools for face-down grinding, belt grinding, peripheral grinding, surface conditioning, polishing, and much more.

COMBICLICK non-woven discs are used for face-down grinding. They are available in the following types: finishing-soft type, surface conditioning-hard type, and unitized.

For achieving a very fine, uniform surface finish which, depending on requirements, is a sufficient preparation for high-gloss polishing. Recommended for work on larger surfaces on components made of stainless steel (INOX).The different thicknesses/hardnesses of the non-woven material are colour-coded: W (soft) = grey, MW (medium-soft) = light blue, MH (medium-hard) = dark blue, H (hard) = red

Materials that can be worked:

Aluminium	Hard non-ferrous metal	Steel materials with a hardness over 54 HRC
Brass	Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)	Steel, cast steel
Bronze	High-temperature-resistant materials	Steels up to 1,200 N/mm² (< 38 HRC)
Cast steel	Nickel-based alloys (e. g. Inconell and Hasteloy)	Thermoplastics
Cobalt-based alloys	Other non-ferrous metals	Titanium
Copper	Soft non-ferrous metal	Titanium alloys
Fibre-reinforced duroplastics (GRP, CRP)	Stainless steel (INOX)

Applications:

Roughening

Deburring

Surface work

Cleaning

Weld dressing

Structuring (matt finishing, brush matting and satin finishing)

Fine grinding in multiple steps

Drive types:

Cordless angle grinder

Angle grinder

Specifications:

Diameter	5
Grit size	fine
Recom. RPM from	4500 RPM
Max. RPM	7650 RPM
Abrasive	SiC
Density	MW (medium-soft)
Spec.	3SF
Packing unit	5 pcs.
EDP number	48170
