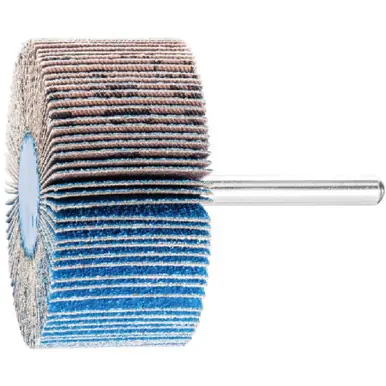

PFERD 45478 2-1/2″ x 1″ Mounted Flap Wheel 1/4″ Shank AlumOxide 80G INOX (10pk)

PFERD 45478 2-1/2″ x 1″ Mounted Flap Wheel 1/4″ Shank AlumOxide 80G INOX

PFERD offers a wide range of coated and non-woven abrasive tools for face-down grinding, belt grinding, peripheral grinding, surface conditioning, polishing, and much more.

On mounted flap wheels, coated abrasive flaps are arranged radially around the wheel axis in a fan-type structure. Their flexibility enables them to adapt perfectly to the contours of the workpiece. The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond.

For coarse grinding work with a high stock removal rate and cool grinding. Active grinding additives in the coating substantially improve the stock removal rate, prevent loading and result in cooler grinding.

Materials that can be worked:

Annealed cast iron	Grey/nodular cast iron (GG/GJL, GGG/GJS)	Stainless steel (INOX)
Brass	Hard non-ferrous metal	Steel materials with a hardness over 54 HRC
Bronze	Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)	Steel, cast steel
Cast steel	High-temperature-resistant materials	Steels up to 1,200 N/mm² (< 38 HRC)
Cobalt-based alloys	Other non-ferrous metals	Titanium
Copper	Soft non-ferrous metal

Applications:

Weld dressing

Deburring

Surface work

Structuring (matt finishing, brush matting and satin finishing)

Fine grinding in multiple steps

Drive types:

Flexible shaft drive

Straight grinder

Specifications:

Diameter	2-1/2
Height	1
Grit size	80
Recom. RPM from	7000 RPM
Max. RPM	23000 RPM
Shank length	1-1/2
Shank dia.	1/4
Packing unit	10 pcs.
EDP number	45478
