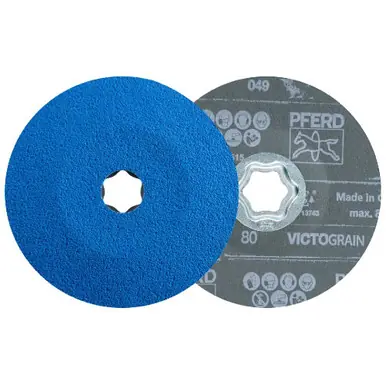

PFERD 40387 – COMBICLICK Fibre Disc dia. 125 mm VICTOGRAIN-COOL80 for Steel & Stainless Steel (25pk)

PFERD 40387-PFERD – COMBICLICK Fibre Disc dia. 125 mm VICTOGRAIN-COOL80 for Steel & Stainless Steel

The COMBICLICK® system consists of a specially developed backing pad and a rugged mounting system at the back of the disc. The backing pad allows COMBICLICK® discs to be used on most available angle grinders. The special geometry of the cooling slots ensures high air throughput, which considerably reduces the thermal load on the abrasive material and the workpiece. The quick-mounting system, rugged fixture, secure attachment of the disc and optimized cooling system help to provide up to 30% lower workpiece temperature, up to 25% increased stock removal, up to 30% longer disc life and improved utilization of the abrasive.PFERD fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation “vulcanized fibre disc”.For maximum aggressive grinding with an extremely long tool life and an outstanding stock removal rate on steels and materials which are hard or have poor heat-conducting properties. Outstanding, constant high performance due to the VICTOGRAIN abrasive grain. Active grinding additives in the coating substantially improve the stock removal rate, prevent loading, and result in cooler grinding.

Advantages:

Innovative quick-mounting system guarantees convenient handling and cool grinding

High productivity due to long service life and very high stock removal rate.

Consistent surface finish resulting from high-quality abrasives.

Extremely quick and easy disc changes reduce process costs.

With COMBICLICK®, scratches caused by protruding clamping parts are prevented and very high utilization of the available abrasive is attained.

VICTOGRAIN abrasive grain allows for high productivity due to long service life, very high stock removal rate, less heat build-up in the workpiece, and a lower power output required for the power tool.

Recommendations for Use:

Use COMBICLICK® fibre discs with COMBICLICK® backing pads on commercially available angle grinders.

Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.

Use powerful angle grinders.

Soft and flexible grinding performance in face-down grinding.

Workpiece Materials:

Cast steel

Hardened, heat-treated steels over 370 HV (38 HRC)

Hard non-ferrous metal

Nickel-based alloys (e.g. Inconell and Hastelloy)

Stainless steel (INOX)

Steel

Steel, cast steel

Steels up to 370 HV (< 38 HRC)

Applications

Deburring

Leveling

Surface work

Working on edges

Work on weld seams

Compatible Power Tools:

Angle grinder

Cordless angle grinder

Specifications:

Item Number	64112508
Abrasive	VICTOGRAIN-COOL
Dia. external	5 Inch
EDP number	40387
Grit size	80
RPM, max.	12200 RPM
Packaging unit	25 pieces
