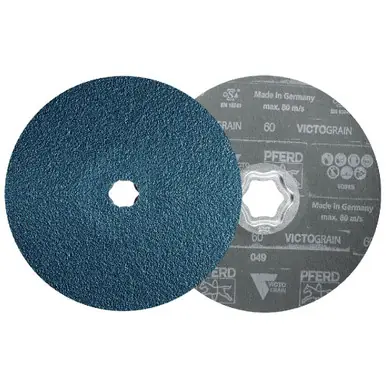

PFERD 40376 – COMBICLICK Fibre Disc dia. 180mm VICTOGRAIN 60 maximum performance on Steel (25pk)

PFERD 40376-PFERD – COMBICLICK Fibre Disc dia. 180mm VICTOGRAIN 60 maximum performance on Steel

The COMBICLICK® system consists of a specially developed backing pad and a rugged mounting system at the back of the disc. The backing pad allows COMBICLICK® discs to be used on most available angle grinders. The special geometry of the cooling slots ensures high air throughput, which considerably reduces the thermal load on the abrasive material and the workpiece. The quick-mounting system, rugged fixture, secure attachment of the disc and optimized cooling system help to provide up to 30% lower workpiece temperature, up to 25% increased stock removal, up to 30% longer disc life and improved utilization of the abrasive.PFERD fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation “vulcanized fibre disc”.For maximum aggressive grinding with an extremely long tool life and an outstanding stock removal rate on steel and hard materials. Outstanding, constant high performance due to the VICTOGRAIN abrasive grain.Each VICTOGRAIN abrasive grain triangle is firmly fixed on one of its sides to the backing material. Due to the slim design, VICTOGRAIN offers an extremely large chip space for maximum cutting efficiency. The structure of the triangular VICTOGRAIN is specially engineered to maximize results. The very fine crystalline structure ensures optimal wear characteristics as sharp cutting edges are always exposed, with the minimum amount of abrasive breaking off from the triangle. By combining all these properties together, users benefit from optimal, consistent performance, cool grinding and an extremely long service life with uniform workpiece surface roughness.

Advantages:

Innovative quick-mounting system guarantees convenient handling and cool grinding

High productivity due to long service life and very high stock removal rate.

Consistent surface finish resulting from high-quality abrasives.

Extremely quick and easy disc changes reduce process costs.

With COMBICLICK®, scratches caused by protruding clamping parts are prevented and very high utilization of the available abrasive is attained.

Recommendations for Use:

Use COMBICLICK® fibre discs with COMBICLICK® backing pads on commercially available angle grinders.

Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.

Use powerful angle grinders.

Workpiece Materials:

Cast steel

Hardened, heat-treated steels over 370 HV (38 HRC)

Hard non-ferrous metal

Nickel-based alloys (e.g. Inconell and Hastelloy)

Steel

Steel, cast steel

Steels up to 370 HV (< 38 HRC)

Applications

Deburring

Leveling

Surface work

Working on edges

Work on weld seams

Compatible Power Tools:

Angle grinder

Cordless angle grinder

Specifications:

Item Number	64118160
Abrasive	VICTOGRAIN
Dia. external	7 Inch
EDP number	40376
Grit size	60
RPM, max.	8500 RPM
Packaging unit	25 pieces
