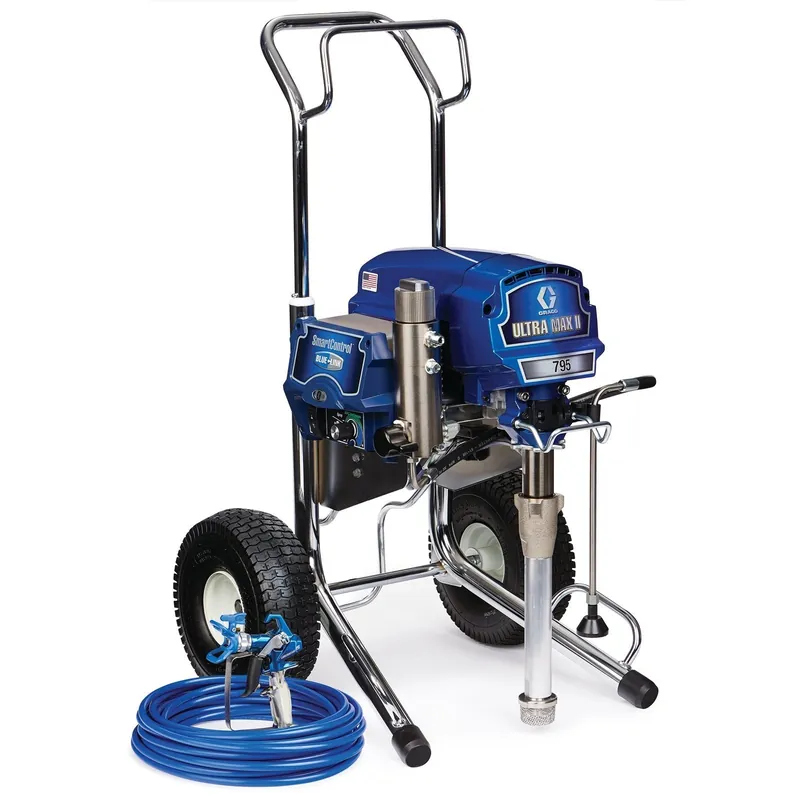

The Ultra Max II 795 Standard Series electric airless sprayer has a 2.2 hp brushless DC motor to handle multiple guns and includes the industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the lightweight and easy-to-use Contractor PC gun and more.
Everyday Reliability. Standard Series large electric airless sprayers are the industry standard for residential and commercial contractors looking for proven reliability to spray a wide variety of coatings with a variety of tip sizes on larger jobs.
Technical Specifications
Amperage (A)
15
Compatible Material
Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler
Engine Size (HP)
2.2
Features
Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun
Filter Mesh Size
60
Fluid Outlet Size (in)
1/4
Fluid Outlet Thread Type
NPSM
Frame Configuration
Hi-Boy
Frequency (Hz)
50/60
Hose Inlet Diameter (in)
1/4
Includes
Contractor PC Gun, RAC X LTX 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM)
1.1
Maximum Sound Pressure Level (dB(A))
82
Maximum Tip Size (in)
0.033
Maximum Tip Size 1 Gun (in)
0.033
Maximum Tip Size 2 Guns (in)
0.025
Maximum Tip Size 3 Guns (in)
0.019
Maximum Working Pressure (MPa)
22.8
Maximum Working Pressure (psi)
3300
Minimum Generator Power (W)
5000
Model
Ultra Max II
Motor Type
MaxPower
Number of Guns
3
Overall Height (in)
38.75
Overall Length (in)
26
Overall Width (in)
22.5
