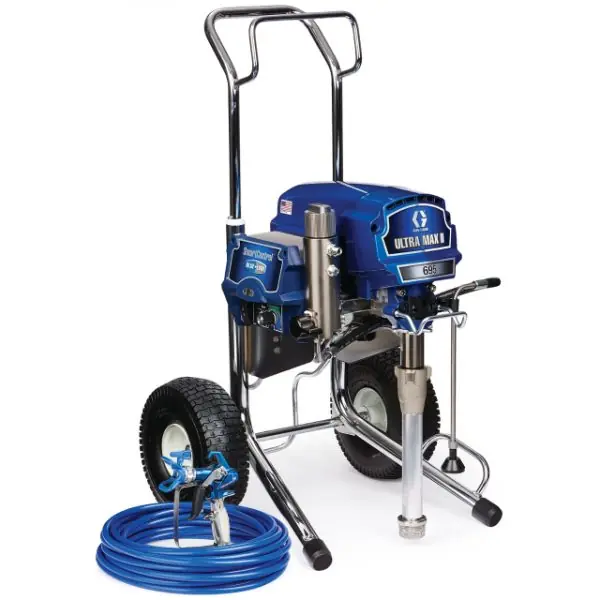

The Ultra Max II 695 ProContractor Series provides reliability and performance with a 2.0 hp brushless DC motor, Endurance Vortex MaxLife Pump and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.
Work Smarter, Finish More Jobs. ProContractor Series electric airless sprayers are built specifically for professional remodeling and repainting contractors looking to increase the number of larger jobs they spray and the performance to spray a wide variety of coatings with a variety of tip sizes.
Technical Specifications
Amperage (A)
15
Compatible Material
Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler
Engine Size (HP)
2
Features
Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun
Filter Mesh Size
60
Fluid Outlet Size (in)
1/4
Fluid Outlet Thread Type
NPSM
Frame Configuration
Lo-Boy
Frequency (Hz)
50/60
Hose Inlet Diameter (in)
1/4
Includes
Contractor PC Gun, RAC X LTX 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM)
0.95
Maximum Sound Pressure Level (dB(A))
82
Maximum Tip Size (in)
0.031
Maximum Tip Size 1 Gun (in)
0.031
Maximum Tip Size 2 Guns (in)
0.023
Maximum Working Pressure (MPa)
22.8
Maximum Working Pressure (psi)
3300
Minimum Generator Power (W)
5000
Model
Ultra Max II
Motor Type
MaxPower
Number of Guns
2
Overall Height (in)
27.5
Overall Length (in)
37
Overall Width (in)
22.5
