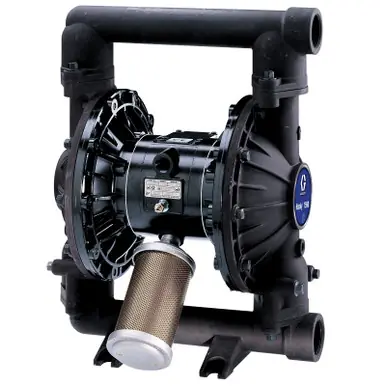

GRACO DBC888 – Husky 1590 AL AODD Metal Pump w/ Standard Air Valve, FKM Seat, Ball & Diaphragm
Genuine GRACO replacement husky 1590 al aodd metal pump w/ standard air valve, fkm seat, ball & diaphragm.
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
Specifications
Air Inlet Size (in)
1/2
Air Inlet Thread Gender
Female
Air Inlet Thread Type
NPT
Application
Industrial
Ball Material
FKM (Viton)
Center Section Material
Aluminum
Compatible Material
Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water – Wastewater Transfer
Connection Type
Threaded
Diaphragm Compatible Material
FKM
Diaphragm Material
FKM (Viton)
Fluid Inlet Size (in)
1-1/2
Fluid Inlet Thread Type
BSPT
Fluid Outlet Size (in)
1-1/2
Fluid Outlet Thread Type
BSPT
Fluid Section Material
Aluminum
Manifold Configuration
End Port
Material
Aluminum
Maximum Air Consumption (SCFM)
125
Maximum Air Pressure (MPa)
0.827
Maximum Air Pressure (psi)
120
Maximum Cycle Rate (CPM)
200
Maximum Flow Rate (GPM)
100
Maximum Fluid Pressure (MPa)
0.827
Maximum Fluid Pressure (psi)
120
Maximum Operating Temperature (°F)
150
Maximum Solid Size (in)
0.1875
Model
Husky
Power Source
Air
Seat Material
Fluoroelastomer
Series
1590
Standards Met
ATEX, CE
Type
Pneumatic Diaphragm Pump
