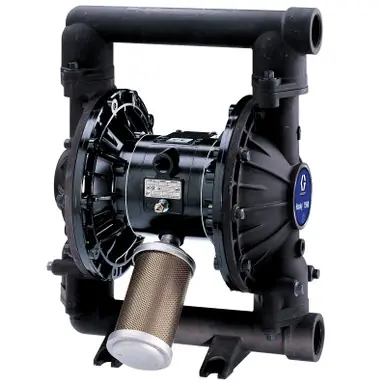

GRACO DB3888 – Husky 1590 AL 1-1/2″ NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM

GRACO DB3888 – Husky 1590 AL 1-1/2″ NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm

Genuine GRACO replacement husky 1590 al 1-1/2″ NPT standard pump, al center section, fkm seats, fkm balls.

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class

Expanded material offering to handle endless applications

Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump

Offered in ATEX configuration.

1-1/2 in. (38.1 mm) ANSI end-porting

High flow – 100 gpm (378 lpm) in a compact, portable size

Fluid pressure to 120 PSI (8.4 bar, 0.84 MPa)

Lube-free operation

Available in polypropylene, aluminum and stainless steel

Epoxy-coated air section for tough environmental conditions

Specifications:

Air Exhaust Port Size (in)	3/4
Air Exhaust Port Thread Gender	Female
Air Exhaust Port Thread Type	NPT
Air Inlet Size (in)	1/2
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Application	Industrial
Ball Material	FKM
Center Section Material	Aluminum
Compatible Material	Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water – Wastewater Transfer
Connection Type	Threaded
Diaphragm Material	FKM
Fluid Inlet Size (in)	1-1/2
Fluid Inlet Thread Gender	Female
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	1-1/2
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPT
Fluid Section Material	Aluminum
Manifold Configuration	End Port
Material	Aluminum
Maximum Air Consumption (SCFM)	125
Maximum Air Pressure (MPa)	0.8
Maximum Air Pressure (psi)	120
Maximum Cycle Rate (CPM)	200
Maximum Flow Rate (GPM)	100
Maximum Fluid Pressure (MPa)	0.8
Maximum Fluid Pressure (psi)	120
Maximum Operating Temperature (°F)	150
Maximum Solid Size (in)	0.1875
Power Source	Air
Seat Material	FKM
Standards Met	ATEX, CE
Type	Pneumatic Diaphragm Pump
Weight (lb)	33.5
