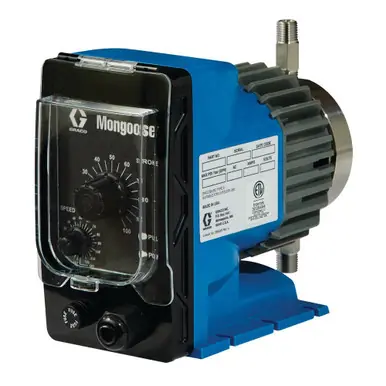

GRACO A21000 – Mongoose Stainless Steel Metering Pump, 120 VAC, 17 GDP, 250 PSI

GRACO A21000 – Mongoose Stainless Steel Metering Pump, 120 VAC, 17 GDP, 250 PSI

Mongoose Electronic Low Pressure Chemical Metering Pump designed for dispensing chemicals across diverse markets including oil and natural gas, mining, agriculture, landscaping, waste water, and car wash applications. Features proprietary GRACO check valves, overload protection, and easy priming capabilities.

Graco Mongoose chemical metering pumps are suitable for dispensing chemicals for a variety of diverse markets such as oil and natural gas, mining, agriculture, landscaping and lawn maintenance, waste water, and car wash. These pumps can also be used in chemical dosing maintenance applications including cooling towers, boilers, and plating, as well as a multitude of other uses.

Overload Protection

Self resetting thermal overload prevents over heating

Over current protection

Easily replaceable fuse for overcurrent

No longer a throwaway pump

Prime/Air Bleed Port

No need to remove fluid section to prime pump

Quick and easy priming

Other Features

Manual stroke adjustment

Splash cover over controls

NEMA 4x style enclosure

UL and CSA certified

Ball/seat check valves

Standards

CE and ATEX approved.

Additional Specifications

Flow Rate: 17 gpd (64.3 lpd)

Max Working Pressure: 250 PSI (17.2 bar)

Material: 316 SST

: LCI-1A17-SPD-0

Certifications: UL and CSA certified

Fluid Section Material: 316 SST

Compatible Material	Corrosion Inhibitors, Methanol, Scavengers
Fluid Inlet Size (in)	1/4
Fluid Outlet Size (in)	1/4
Fluid Section Material	Stainless Steel
Material	Stainless Steel
Maximum Amperage (A)	0.5
Maximum Cycle Rate (CPM)	145
Maximum Flow Rate (GPD)	17
Maximum Fluid Pressure (MPa)	1.72
Maximum Fluid Pressure (psi)	250
Minimum Amperage (A)	0.1
Power Source	Electric
Type	Electric Diaphragm Pump
Voltage (V ac)	120

Features

Proprietary design SST Head GRACO check valves

Poppet style eliminates valve on seat sticking

Self resetting thermal overload prevents over heating

Over current protection with easily replaceable fuse

No need to remove fluid section to prime pump

Quick and easy priming

Applications

Oil and natural gas

Mining

Agriculture

Landscaping and lawn maintenance

Waste water treatment

Car wash

Compatible Equipment

Mongoose Metering Pump systems

Related Parts

A21008 – Mongoose PVDF Metering Pump 120V, 17 GDP 250 PSI

Part of the Mongoose Chemical Metering Pump family with SST Head configuration. Uses same style valve as other GRACO chemical pumps. ETL approved, conforms to UL STD 778, certified to CSA C22.2 No. 108 This is a fluid end assembly that includes inlet valve, outlet valve, and prime/bleed valve components. Shows both standard and alternate configurations in the diagrams.

Reference Manuals

3G0001EN – F (Page 51)

3A4131 (Page 3) Mongoose Chemical Metering Pump
