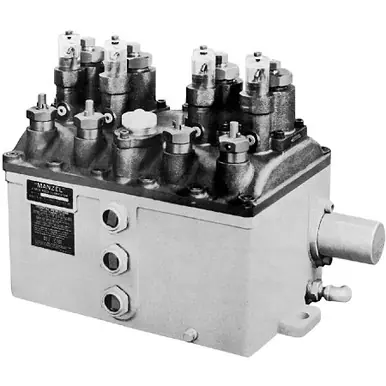

GRACO 562952 – Manzel HP-50 High Pressure Compressor Lubricator Replacement Pump, 1/4″ Piston,

GRACO 562952 Manzel® HP-50 High Pressure Compressor Lubricator Replacement Pump, 1/4 in, 50000 psi (3447 bar)

Single plunger force feed design is highly efficient for injecting lubricants and/or compatible fluids into high pressure systems. Vacuum sight feeds on self-contained pumping units show output of lubricant to individual lubrication points.

For lubricating compressor and circulator cylinder walls, heavily loaded bearings and other moving parts.

Operating pressures up to 60,000 psi (4137 bar)

All working parts are totally enclosed and self-lubricated

Individual pumping units easily removed for service

Feed rate infinitely variable from minimum to maximum with simple hand adjustment

Specifications

Compatible Material	Oil
Maximum Fluid Viscosity (SUS)	5000
Minimum Fluid Viscosity (SUS)	100
Overall Depth (in)	22.68
Overall Height (in)	14.77
Overall Width (in)	11.56
Pump Size (in)	1/4
Reservoir Material	Cast Iron
Type	Box Lubricator
Compatible Material	Oil
Maximum Fluid Viscosity (SUS)	5000
Minimum Fluid Viscosity (SUS)	100
Overall Depth (cm)	57.61
Overall Depth (mm)	576.1
Overall Height (cm)	37.5
Overall Height (mm)	375
Overall Width (cm)	29.36
Overall Width (mm)	293.6
Pump Size (cm)	0.6
Pump Size (mm)	6.3
Reservoir Material	Cast Iron
Type	Box Lubricator
