GRACO 25U513 – ES 500 Battery-Powered Airless Stencil Rig

GRACO 25U513 – ES 500 Battery-Powered Airless Stencil Rig

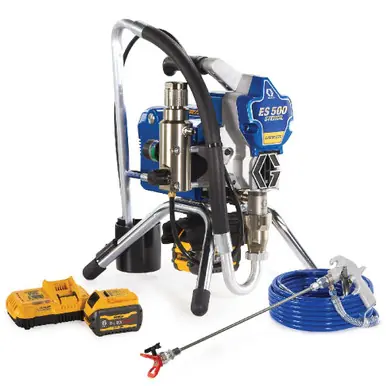

The ES 500 Stencil is a DeWalt-powered airless stencil rig designed specifically for fast-dry traffic paints. This battery-powered system is the perfect addition to any striping contractor’s fleet, offering portability and precision for stenciling applications without the need for cords or generators.

Max Working Pressure: high-pressure

Power Source: DeWalt battery-powered

Spray Capacity: up to 8 gallons

Type: cordless electric airless sprayer

Specifications

Battery Capacity (Ah)	6
Battery Chemistry	Lithium-ion
Includes	Flex Plus Striping Gun, RAC 5 419 SwitchTip, RAC 5 Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 15 in Extension, 2 – DEWALT 20V/60V Max 6.0 Ah FlexVolt Batteries, DEWALT Fan-Cooled Fast Charger
Maximum Flow Rate (GPM)	0.47
Maximum Tip Size (in)	0.021
Maximum Working Pressure (psi)	3300
Power Source	Battery Powered
Pressure Control Type	Pressure Control Knob
Pump Type	Endurance
Series	ES 500 Stencil
Type	Airless Sprayer

Features

DeWalt battery-powered for cordless operation

Designed specifically for fast-dry traffic paints

High-pressure airless spraying capability

Portable stencil rig design

No engine noise, vibration or fumes

Fast charging DeWalt battery system

Applications

Traffic paint stenciling

Road marking stencils

Parking lot stenciling

Fast-dry paint applications

Compatible Equipment

DeWalt FlexVolt batteries

Fast-dry traffic paints

DeWalt battery system

line striping materials

ES 500 Stencil applications

Related Parts

25U546 – LineLazer ES 500

25U514

Kit Contents

DeWalt 9.0 Ah FlexVolt batteries

Fast charger

Part of the ES 500 family of DeWalt-powered line striping equipment. Includes DeWalt 9.0 Ah FlexVolt batteries and fast charger with spraying capacity up to 8 gallons. Part of the ES 500 family of DeWalt-powered line striping equipment. Shares battery system compatibility with the LineLazer ES 500. ES 500 Stencil Model for the application of line striping materials. Not approved for use in explosive atmospheres or hazardous (classified) locations. For professional use only. Uses only genuine GRACO replacement parts.

Reference Manuals

344385 (Page 6) LineLazerBrochure (ANZ ONLY)

3J0284EN (Page 3) EN-B

3J0284EN – B (Page 3)

3A8179 (Page 1) Cordless Electric Airless Sprayers, 390 PC, ES 500, Operation, Parts
