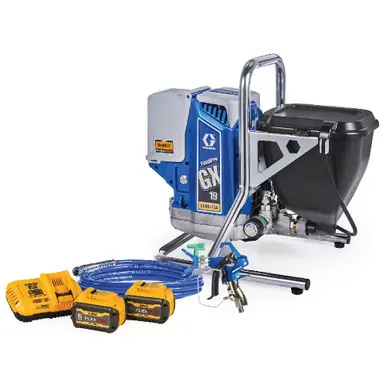

GRACO 25U341 – Finish Pro GX 19 Cordless Airless Sprayer, 3000 PSI

GRACO 25U341 – Finish Pro GX 19 Cordless Airless Sprayer, 3000 PSI

Professional cordless airless sprayer designed for high productivity fine finish applications. Features advanced airless technology for superior atomization and finish quality without the constraints of power cords, ideal for interior and exterior painting projects where mobility and professional results are essential.

Introducing the FinishPro GX 19 Cordless, the industry’s fastest and most portable finishing sprayer ever built! Designed to deliver full system performance with the freedom to work anywhere even where power is not available.

Additional Specifications

Flow Rate: spray up to 5 gallons

Max Working Pressure: 3000 PSI (207 bar)

Power Source: (2) 15 WATT 60VMax Flexvolt DeWalt Compatible and (1) Fast Cooled Fast Charger

Motor Type: Powerful brushless DC motor

Gun Type: Smallest, most light weight mechanical gun on the market

Weight: 29 lbs (13.2 kg)

Hose Wrap: Flex Wrap

Filter: 100 Mesh Gun Filter

Tips: RAC X FTL PX10

Application: portable airless spraying of architectural paints and coatings

Specifications

Battery Chemistry	Lithium-ion
Battery Voltage (V)	60
Compatible Replacement Pump	17J909
Fluid Outlet Size (in)	1/4
Fluid Outlet Thread Type	NPSM
Frame Configuration	Hopper
Gun Included	1
Hopper Capacity (gal)	1.5
Includes	Contractor PC Compact Spray Gun, RAC X FF LP 210 Spray Tip, RAC X Guard, 3/16 in x 25 ft BlueMax II Airless Hose, 2 – DEWALT 20V/60V Max FlexVolt Batteries, DEWALT Fan-Cooled Fast Charger
Maximum Flow Rate (GPM)	0.38
Maximum Tip Size (in)	0.019
Maximum Working Pressure (psi)	3000
Model	FinishPro
Motor Type	Brushless DC
Overall Height (in)	20
Overall Length (in)	20
Overall Width (in)	14
Power Rating (HP)	0.5
Power Source	Battery Powered
Pressure Control Type	Pressure Control Knob
Pump Type	ProX Piston Pump
Series	GX 19 Cordless
Type	Airless Sprayer
Weight (lb)	35

Features

Ultimate power and proven performance with DEWALT FlexVolt batteries

High capacity 5ah FlexVolt batteries – spray up to 5 gallons before charging required

Delivered complete with two batteries

Powerful brushless DC motor provides extended battery run time

Lightweight, compact design allows for increased portability

50% lighter trigger pull

Applications

Small finishing jobs

Lacquer applications

Water based sprayer applications

Tight area spraying

Portable finishing work

Fine finish spraying applications

Compatible Equipment

DEWALT FlexVolt battery system

Contractor PC Compact Gun

ProConnect cartridge system

RAC X FTL PX10 tips

DeWalt 60V Max Flexvolt battery system

GX19 Cordless Electric Airless Sprayer system

Related Parts

17F924 – FinishPro GX 19 Corded

17C417 – Finish Pro II 395 PC Electric Air-Assisted Airless Sprayer, 1500 PSI

17E908 – Finish Pro II 595 PC Pro Electric Air-Assisted Airless Sprayer

25U855

18H246

25U466

25U570

25T973

25T967

Kit Contents

Two DEWALT FlexVolt batteries

Contractor PC Compact Gun

ProConnect cartridge system

Includes all features of the GX 19 Corded plus added cordless capabilities. Powered by DEWALT battery system for maximum portability. Part of the FinishPro GX 19 series designed for extreme control and high productivity applications. Compatible with DeWalt battery platform for maximum versatility. For portable airless spraying of architectural paints and coatings. Not approved for use in explosive atmospheres or hazardous (classified) locations. For professional use only. Use only genuine GRACO replacement parts.

Reference Manuals

344400 (Page 7) Fine finish sprayers

3J0545EN (Page 8) ENEU-E

3J0546EN (Page 8)

3A8429 (Page 1) GX19, GX FF, GX21 Cordless Electric Airless Sprayers, Operation, Parts
