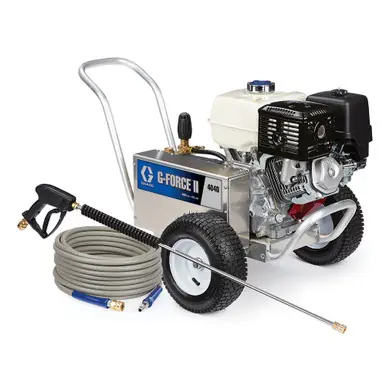

GRACO 25N679K – G-FORCE II 4040 KG-BD Pressure Washer, 4000 PSI, 4 GPM w/ Kohler Engine & GP Pump

GRACO 25N679K – G-FORCE II 4040 KG-BD Pressure Washer, 4000 PSI, 4 GPM w/ Kohler Engine & GP Pump

Specifications

Max Working Pressure: 4000 PSI (27.6 MPa, 276 Bar)

Flow Rate: 4.0 GPM

Engine: Kohler

Pump: GP

Drive System: Belt Drive

Crankcase Oil Capacity: 40.6 oz (1.2 L)

Compatible Equipment

G-FORCE II series pressure washers

GX390 Engine

CH440 Engine

GP – HP series pump

CAT – 5PP series pump

Pump 127384 – Pump, Gp, Hp4040

Related Parts

25N634 – G-FORCE II 3325 HA-DD Pressure Washer, 3300 PSI, 2.5 GPM w/ Honda Engine & AR Pump

25N638

25N635 – G-FORCE II 3230 HA-DD Pressure Washer, 3200 PSI, 3 GPM w/ Honda Engine & AR Pump

25N639 – G-Force II 3230 HA-DD Pressure Washer, AR Brass Triplex pump, 3200 PSI

25N636 – G-FORCE II 4240 KA-DD Pressure Washer, 4200 PSI, 4 GPM w/ Kohler Engine & AR Pump

25N640

25N637 – G-FORCE II 4240 HA-DD Pressure Washer, 4200 PSI, 4 GPM w/ Honda Engine & AR Pump

25N641

25N677 – G-FORCE II 4040 HG-DD Pressure Washer, 4000 PSI, 4 GPM w/ Honda Engine & GP Pump

25N681

This is a 4000 PSI pressure washer model with Kohler engine, GP pump, and belt drive system. Model designation follows format: Pressure (40=4000 PSI) + Engine (K=Kohler) + Pump (G=GP) + Drive (BD=Belt Drive) This is one of the main model numbers for this belt-drive pressure washer series. The page shows it’s compatible with multiple engine and pump configurations. Series A belt drive units will need to buy a set of Series B engine pulley and bushing when replacing either PN 127706 or 127703. 25N679K is listed as one of three models (25N679, 25N683, 25N679K) that use pump 127384. The pump has a crankcase oil capacity of 40.6 oz (1.2 L). This appears to be a model designation rather than an individual part number.

Reference Manuals

3A6588 (Page 2) Pressure Washers, Operation, Repair, Parts
