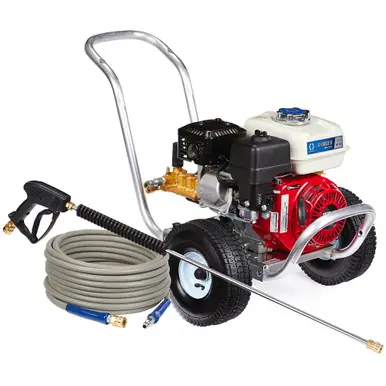

GRACO 25N634 – G-FORCE II 3325 HA-DD Pressure Washer, 3300 PSI, 2.5 GPM w/ Honda Engine & AR Pump

GRACO 25N634 – G-FORCE II 3325 HA-DD Pressure Washer, 3300 PSI, 2.5 GPM w/ Honda Engine & AR Pump

Ideal for remodelers & property maintenance cleaning needs, the G-Force II 3325 HA-DD pressure washer is the best choice for medium duty applications. It’s light, compact, provides everyday reliability and is the perfect choice when you need consistent reliability for the occasional cleaning job.

Honda® Engine

Reliable, powerful & easy-to-start

Oil Alert shuts down engine to prevent damage if oil level drops too low

Thermal sensor prevents pump from overheating in bypass mode

Reliable, AR Triplex Plunger Water Pump

100% Heavy-Gauge Aluminum Frames

Up to 40% lighter than steel frames

Corrosion resistant to water and chemicals

Standard on all Graco models

Lifetime Warranty

EZ Start Pressure Relief For Easier Starting

Standard Graco feature

Allows water bypass pump to eliminate pressure build-up in the system

No need to pull the gun trigger while starting the washer

Direct Drive

Compact design with fewer components and lighter weight

Pump is connected directly to the drive shaft of the engine

Pump rpm matches that of the engine (usually around 3500 rpm)

Includes:

Professional-Grade Pressure Washer Spray Gun with Quick Connects

36 in Pressure Washer Wand with Quick Connect

3/8 in x 50 ft Non-Marking Pressure Washer Hose

4 ft Chemical Injector Hose with Strainer

0° Red Pressure Washer Tip

15° Yellow Pressure Washer Tip

25° Green Pressure Washer Tip

Black Chemical Pressure Washer Tip

Specifications

ENGINE BRAND	Honda
ENGINE MODEL	GX200
FUEL TANK CAPACITY (L)	3.6
FUEL TANK CAPACITY (QT)	3.8
HOSE INLET DIAMETER (CM)	0.9525
HOSE INLET DIAMETER (IN)	3/8
HOSE INLET DIAMETER (MM)	9.525
HOSE LENGTH (CM)	1524
HOSE LENGTH (FT)	50
HOSE LENGTH (M)	15.2
HOSE LENGTH (MM)	15240
MAXIMUM FLOW RATE (GPM)	2.5
MAXIMUM FLOW RATE (L/MIN)	9.46
MAXIMUM FLUID PRESSURE (BAR)	227.5
MAXIMUM FLUID PRESSURE (KPA)	22750
MAXIMUM FLUID PRESSURE (PSI)	3300
MAXIMUM OPERATING TEMPERATURE (°C)	63
MAXIMUM OPERATING TEMPERATURE (°F)	145
MAXIMUM WORKING PRESSURE (BAR)	227
MAXIMUM WORKING PRESSURE (KPA)	22700
MAXIMUM WORKING PRESSURE (PSI)	3300
MODEL	G-Force II
MOTOR DRIVE TYPE	Direct Drive
PUMP BRAND	AR
PUMP TYPE	Triplex Plunger
RECOMMENDED WEEKLY USAGE (HOURS)	10-20
SERIES	3325
TYPE	Gas Pressure Washer
WEIGHT (KG)	26
WEIGHT (LB)	57
MAXIMUM WORKING PRESSURE (MPA)	22.7

Compatible Equipment

G-FORCE II series pressure washers

Direct-Drive pressure washer systems

25N635 – G-FORCE II 3230 HA-DD Pressure Washer, 3200 PSI, 3 GPM w/ Honda Engine & AR Pump

25N636 – G-FORCE II 4240 KA-DD Pressure Washer, 4200 PSI, 4 GPM w/ Kohler Engine & AR Pump

25N637 – G-FORCE II 4240 HA-DD Pressure Washer, 4200 PSI, 4 GPM w/ Honda Engine & AR Pump

Related Parts

25N638

25N635 – G-FORCE II 3230 HA-DD Pressure Washer, 3200 PSI, 3 GPM w/ Honda Engine & AR Pump

25N639 – G-Force II 3230 HA-DD Pressure Washer, AR Brass Triplex pump, 3200 PSI

25N636 – G-FORCE II 4240 KA-DD Pressure Washer, 4200 PSI, 4 GPM w/ Kohler Engine & AR Pump

25N640

25N637 – G-FORCE II 4240 HA-DD Pressure Washer, 4200 PSI, 4 GPM w/ Honda Engine & AR Pump

25N641

25N677 – G-FORCE II 4040 HG-DD Pressure Washer, 4000 PSI, 4 GPM w/ Honda Engine & GP Pump

25N681, 25N677K

This is a 3325 model pressure washer with Honda engine, AR pump, and direct drive system. The model naming convention shows: 33=3300 PSI pressure rating, 25=2.5 GPM flow rate, H=Honda engine, A=AR pump, DD=Direct Drive system. This is a model number for a direct-drive pressure washer system. The page shows exploded view parts diagram with numbered components (1-30) but does not provide specific specifications for the 25N634 model itself. 25N634 is listed as one of the main models in this Direct-Drive parts list series. It appears in various component compatibility lists throughout the manual including: GX200 engine compatibility, base plate frame compatibility, wheel/tire compatibility, safety label compatibility, foot bracket compatibility, and nozzle compatibility (uses 0° red 2.7 nozzle and 15° yellow 2.7 nozzle). Also compatible with thermal valve part 17A562.

Reference Manuals

3A6588 (Page 2) Pressure Washers, Operation, Repair, Parts
