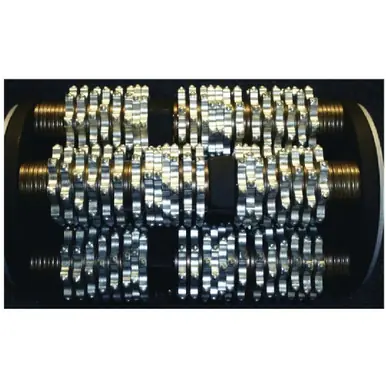

GRACO 25N209 – Pro/HP DC8, Carbide Flail 8 Point, Medium, 8″

GRACO 25N209 – Pro/HP DC8, Carbide Flail 8 Point, Medium, 8″

Professional-grade carbide flail 8-point drum cutter designed for medium-duty surface preparation applications. Features durable carbide construction for extended life and superior performance on concrete and other hard surfaces. Engineered for use with GRACO’s Pro/HP series drum cutting equipment including GrindLazer Pro DC89, DC1013, HP DC89, HP DC1013, and HP DC1021 models.

Additional Specifications

Material: Carbide

Cut Width: 8 in (20cm)

Profile: Medium

Cutter Type: Carbide Flail

Drum Rebuild Kit: 25N286

Spacers Included: 186

Spacers: 186

Compatible Application: Paint & Epoxy Removal

Specifications

SKU	25N209
Series	Pro/HP Series
Model Scope	Pro/HP DC8
Cutter Type	Carbide Flail 8 Point
Profile	Medium
Cut Width	8 in
Rebuild Kit	25N286
# Cutters	126
# Spacers	186
# Rods/Keys	6
Notes
PDF	Product Flyer

Features

Carbide construction for extended wear life

8-point flail design for aggressive cutting action

Medium profile for balanced performance

Drum-style cutter configuration

Part of fully assembled drum systems

8-point carbide flail design for aggressive cutting

Applications

Surface preparation

Coating removal

Concrete grinding

Industrial floor preparation

Concrete surface preparation

Paint and coating removal

Compatible Equipment

GrindLazer Pro DC1013 G

GrindLazer HP DC89 G

GrindLazer HP DC1013 G (DCS)

GrindLazer HP DC1021 G (DCS)

GrindLazer Pro DC89

GrindLazer Pro DC1013

Related Parts

25N205 – Pro/HP DC10, Carbide Flail 8 Point, Fine, 10″

25N206 – Pro/HP DC8, Carbide Flail 8 Point, Fine, 8″

25N207 – Pro/HP DC6, Carbide Flail 8 Point, Fine, 6″

25N208 – Pro/HP DC10, Carbide Flail 8 Point, Medium, 10″

25N210 – Pro/HP DC6, Carbide Flail 8 Point, Medium, 6″

25N211 – Pro/HP DC8, Carbide Flail 8 Point, Coarse, 8″

25N212 – Pro/HP DC6, Carbide Flail 8 Point, Coarse, 6″

25N283 – Carbide Flail Drum Assembly, Fine, 8″ Cut

25N284 – Carbide Flail Drum Assembly, Fine, 6″ Cut

25N285 – Carbide Flail Drum Assembly, Medium, 10″ Cut

This is an individual cutter component that can be used in drum rebuild kits or as part of fully assembled drum systems Part of GRACO’s comprehensive Pro/HP Series drum cutter system. Medium profile provides optimal balance between cutting aggressiveness and surface finish quality. Part of the High Production Series GrindLazer cutter system. Specifically designed for paint and epoxy removal applications with 8-inch cut width capability.

Reference Manuals

341251 (Page 26) GrindLazer

344384 (Page 17) GrindLazer Brochure (Asia Pacific)

3J0210EN (Page 6) EN-A

3J0210EN – A (Page 6)

3J0210EN – C (Page 6)
