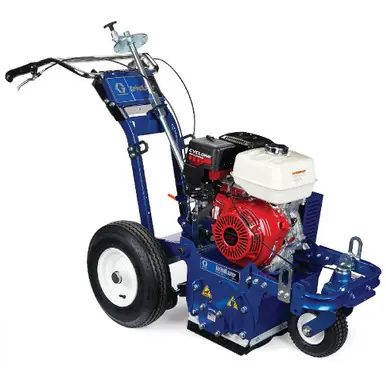

GRACO 25M993 – GrindLazer High Production DC1013 G Drum Scarifier (Bare Unit) – 13 HP Honda
High-production drum scarifier designed for heavy-duty concrete surface preparation with electric start convenience and professional-grade performance for larger commercial applications
The GrindLazer HP DC1013 G is the contractor choice for all-around scarifying jobs, including parking lot lines, intersection markings, construction zones and sidewalk smoothing. The optional LineDriver System delivers unmatched productivity to get more work done without the fatigue from walking.
DialDown Depth Control System
Easy Cutter Depth Control
Easy to dial down for precise cutting depth control with multiple positions
InstaCut Technology
Ultimate Removal or Inlay Flexibility
Only unit to offer hands-on engagement of the cutting deck system for up or down position
Allows deck to float when on uneven surfaces No-tool system
Vibration Reduction Technology
All-Day Comfort
Up to 4x less vibration than the competition
Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
Comfort-grip handlebars for precise steering
Durable 13 HP Honda Power With Cyclone Filter
Contractor-Preferred Power
Cyclone filter protects the engine from harmful airborne dust
Extreme-Duty ProStart System
Safer Operation
Easy cutter start/stop with centrifugal Easy cold weather starting
Provides longer belt life and eliminates broken recoils
TriBelt Drive System
Maximum Road Handling
3-cog belt design optimizes power transfer and eliminates costly downtime
Fat Track Front Swivel Wheel
Fast, Easy Turning
Proven front caster wheel system makes turning fast and easy
Maneuver curves better No need to muscle it while moving
EasyGlide Wheel Mount System
Safer, Easier To Maneuver
Front-mounted caster along with dual rear pneumatic air-filled tires
Pneumatic air-filled tires help eliminate vibration
Dust Removal
Vacuum port for optional LazerVac vacuum system
LineDriver Compatible
Double Your Productivity
Additional Specifications
Max Working Width: 25 cm (10″)
Cutter Drum Diameter: 17.5 cm (7″)
Engine: Honda 390 (13)
Engine Start: ProStart (25M993) Electric Start (25N658)
Max Cut Rate Walk: 75 m²/hr (800 ft²/hr)
Max Cut Rate Linedriver: 160 m²/hr (1700 ft²/hr)
Weight: 141 kg (310 lbs) for 25M993
Specifications
Air Filter Type
Cyclone
Cut Direction
Forward
Cutter Drum Diameter (in)
5
Cutter Type
Drum
Depth Adjustment
Manual
Engine Brand
Honda
Engine Model
GX390
Engine Size (HP)
13
Engine Start Type
ProStart
LineDriver Required
Optional
Maximum Cut Rate (ft2/hr)
800
Maximum Cut Rate w/ LineDriver (ft2/hr)
1700
Maximum Cut Width (in)
10
Model
GrindLazer
Product Series
High Production
Series
High Production Series
Type
Concrete Scarifier
Vacuum Port
Yes
Water Connection
Optional
Features
ProStart engine starting system
Electric start capability
Vacuum port for dust collection
Cyclone air filter system
Tach/Hour meter included
Optional dust suppression water connection
Applications
Concrete surface preparation
Floor scarifying and texturing
Coating removal
Commercial and industrial floor prep
Compatible Equipment
Optional LineDriver system
Dust collection systems via vacuum port
Water suppression systems (optional)
Related Parts
25N658 – Electric start version with DCS
25M992 – HP DC89 G model
25M994 – HP DC1021 G model
This is the bare unit version (25M993) with ProStart system, while 25N658 offers electric start. Part of the GrindLazer HP series for high-production applications.
