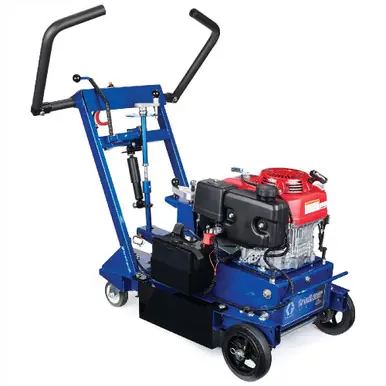

GRACO 25M847 – GrindLazer Pro RC813 G Rotary Scarifier (Bare Unit) – 13 HP Honda
The GrindLazer Pro RC813 G is the ideal choice for when you need to remove lines without grooves. The rotary action of this scarifier hovers over the surface, resulting in line removal without leaving any ghost linesmaking this the No-Groove Line Eraser. Features contractor-preferred Honda power with electric start for easy operation even in cold weather.
No-Groove Line Eraser
Rotary cut removes lines without leaving any grooves
Honda Power with Electric Start
Contractor preferred power and proven reliability
Electric start system allows for easy starting with the flip of a switcheven in cold weather
All-Steel Frame
Heavy-duty design will hold up to the harsh jobsite environment
Advanced Depth-Control System
Independent adjustment for pitch, depth and pressuregiving you ultimate control and no-damage removal on a wide range of surfaces
Tilt-Up Chassis
Designed for quick and easy cutter removal
Adjustable, Anti-Vibration Handle Bars
Padded for minimal vibration transfer
Adjustable for all-day comfort for all users
Dust-Free Vacuum Port
Allows for hookup of a LazerVac vacuum system for the reduction of airborne dust
Maintenance-Free Sealed Bearings
Maintenance-free design for long life and ease-of-use
Dual Purpose Tachometer and Hour Meter
Track usage for maintenanceensuring your equipment is in top shape
Displays engine RPMs while running
Additional Specifications
Material: Heavy-Duty All-Steel Frame
Drum Diameter: 20 cm (8″)
Engine: Honda Power with Electric Start
Coverage Rate: 75 m²/hr (800 ft²/hr)
Weight: 204 kg (450 lbs)
Design: Rotary Scarifier
Specifications
Air Filter Type
Cyclone
Cut Direction
Rotary
Cutter Type
Rotary
Depth Adjustment
Manual
Engine Brand
Honda
Engine Model
GXV390
Engine Size (HP)
13
Engine Start Type
Electric Start
Maximum Cut Rate (ft2/hr)
800
Maximum Cut Width (in)
8
Model
GrindLazer
Product Series
Professional
Series
Professional Series
Type
Concrete Scarifier
Vacuum Port
Yes
Water Connection
No
Features
13 HP Honda vertical engine for reliable power
Electric start for easy operation
High productivity with 75 m²/hr coverage rate
20 cm (8″) rotary drum design
Standard dust collection capability
Optional remote control available
Applications
Concrete surface preparation
Surface grinding and scarifying
Floor preparation applications
Line removal without grooves
Surface preparation
Pavement marking removal
Related Parts
25N669 – GrindLazer Pro RC813 G DCS Gas-Powered Scarifier
25M843 – GrindLazer Standard DC89 G
25M846 – GrindLazer Pro DC1013 G
25M659 – PRO RC813 G DCS (bare)
Part of the GrindLazer Pro series. Features standard dust collection with optional remote control capability. Alternative model 25N669 also available. This is the bare unit version of the PRO RC813 G. The DCS version (25M659) includes additional Depth Control System features for enhanced control and application flexibility.
