GRACO 25M224 – LineLazer 3400 Gas Airless Line Striper, 1 Manual Gun, 3300 PSI

GRACO 25M224 – LineLazer 3400 Gas Airless Line Striper, 1 Manual Gun

LineLazer 3400 gas-powered airless line striper with single manual gun configuration, designed for pavement marking applications. Features reliable gas engine power for efficient line striping operations.

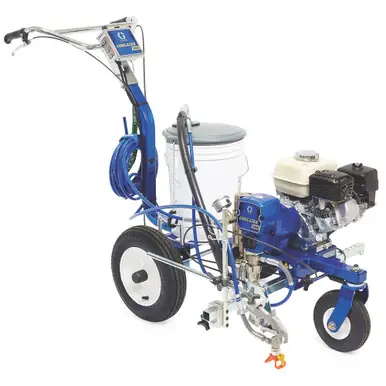

GRACO 25M224 LineLazer 3400 Gas Airless Line Striper, 1 Manual Gun
The LineLazer 3400 is the professional choice for dependable, 1-gun striping for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.

Updated Frame

Improved Tracking & Line Quality

Added stability with newly designed, 3-inch longer frame

Accepts 15-gallon hopper and EZ Bead System

Rear Mount Hose Wrap

Easier Stencil Jobs

Easy on/off functionality

Easy-To-Reach Controls

Fine-tune the striper without stopping

Operator controls are located on the handlebars

New Handlebar Design

Reduced Vibration

Less operator fatigue with greater comfort and control

Electronic Pressure Control

Improved Line Quality

Accurate, tight tolerance system

Endurance Chromex Pump

Reliable, Long-Life Pump

Industry-best pump performance field-proven design

Handle the most demanding materials with long-life rod treatment

4X harder than ordinary chrome

Honda GX Engine

Reliable, Easy-to-Start Power

Contractor-preferred excellent power and proven reliability

Oil Alert shuts down engine to prevent damage if oil level drops too low

Easy Out Pump Filter

Easy Pump Maintenance & Less Clogging

Inside-out design means less mess with fewer tip clogs

Front Swivel Wheel

Easier Maneuverability

Ability to stripe right up to the curb

Makes easy work of hard-to-do curves

Years of dependable operation with tapered locking pin design

Specifications

Additional Specifications

Hose Size: 1/4 in x 50 ft (6.4 mm x 15 m)

Easy Out Filter: 60 Mesh

Intake: QuikAccess

Pod: Chromex

Cylinder: Hardened SST

Packing: V-Max Blue

Application: line striping materials

Usage: professional use only, outdoor use only

Restrictions: not approved for use in explosive atmospheres or hazardous locations

Specifications

Compatible Material	Road-Marking Paint
Compatible Surfaces	Pavement, Turf
Engine Brand	Honda
Engine Model	GX120
Fuel Tank Capacity (gal)	0.66
Gun Activation	Manual
Hopper Volume Capacity (gal)	15
Includes	Flex Plus Gun, LineLazer RAC 5 317 Spray Tip, LineLazer RAC 5 319 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL, 4 oz (118 ml)
Maximum Flow Rate (GPM)	0.75
Maximum Sound Pressure Level (dB(A))	91
Maximum Tip Size (in)	0.027
Maximum Working Pressure (psi)	3300
Model	LineLazer
Number of Colors	One Color
Number of Guns	1
Number of Pumps	1
Overall Height (in)	39.4
Overall Length (in)	66.3
Overall Width (in)	26.0
Power Rating (HP)	4
Power Rating (W)	2980
Power Rating (kW)	2.98
Power Source	Gas
Pump Type	Endurance
Recommended Annual Usage	Up to 250 gallons per week
Series	3400
Type	Walk-Behind Line Striper
Weight (lb)	160
Compatible Material	Road-Marking Paint
Compatible Surfaces	Pavement, Turf
Engine Brand	Honda
Engine Model	GX120
Fuel Tank Capacity (L)	2.5
Gun Activation	Manual
Hopper Volume Capacity (L)	56.8
Includes	Flex Plus Gun, LineLazer RAC 5 317 Spray Tip, LineLazer RAC 5 319 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL, 4 oz (118 ml)
Maximum Flow Rate (L/min)	2.8
Maximum Sound Pressure Level (dB(A))	91
Maximum Tip Size (cm)	0.0686
Maximum Tip Size (mm)	0.6858
Maximum Working Pressure (bar)	227
Maximum Working Pressure (kPa)	2270
Model	LineLazer
Number of Colors	One Color
Number of Guns	1
Number of Pumps	1
Overall Height (cm)	100.0
Overall Height (mm)	1000.7600
Overall Length (cm)	168.4
Overall Length (mm)	1684.02
Overall Width (cm)	66.0
Overall Width (mm)	660.4000
Power Rating (HP)	4
Power Rating (W)	2980
Power Rating (kW)	2.98
Power Source	Gas
Pump Type	Endurance
Recommended Annual Usage	Up to 250 gallons per week
Series	3400
Type	Walk-Behind Line Striper
Weight (kg)	73

Features

Gas-powered engine for portability and power

3300 PSI maximum pressure capability

Single manual gun configuration

50 ft BlueMax 4 airless hose included

LineLazer RAC 5 switch tip system

QuikAccess intake system

Applications

Pavement marking

Line striping operations

Traffic marking

Parking lot striping

Compatible Equipment

LineLazer 3400 series equipment

Gun (manual 311254)

Pump (manual 309250)

LineLazer 3400 Gas Airless Line Striper

Related Parts

25L546, 25L8R5, 25L8R2, 25L8R6

25P341

Part of the LineLazer 3400 Standard series with Flex Plus 1 Manual gun configuration. Specifications indicate this is a complete line striper unit rather than an individual component. Part of LineLazer 3400 series, gas-powered airless line striper for professional line marking applications This appears to be a diagram reference number for the engine wiring schematic showing clutch wires, ground wire (green/yellow), and pink wire from engine. Related to engine removal and installation procedures.

Reference Manuals

344385 (Page 6) LineLazerBrochure (ANZ ONLY)

3A4587 (Page 1) LineLazer 3400 Airless Line Striper, Operation, Repair, Parts
