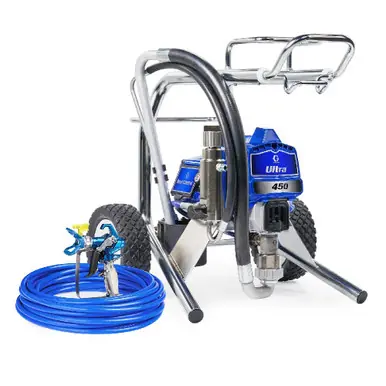

GRACO 25F507 – Ultra 450 Electric Airless Sprayer, Lo-Cart, Chromex piston rod, 3300 PSI

GRACO 25F507 – Ultra 450 Electric Airless Sprayer, Lo-Cart, Chromex piston rod, 3300 PSI

Professional electric airless paint sprayer designed for contractors needing reliable performance with LCD display and advanced features. Part of GRACO’s Ultra series with corded power for consistent operation on demanding jobsites.

The Ultra 450 Electric Airless Sprayer is the perfect upgrade for contractors, featuring FastFlush, WatchDog, and SmartControl to save time, reduce wear, and deliver the perfect airless finish with superior performance.

Additional Specifications

Flow Rate: 0.54 GPM (2.0 LPM)

Max Working Pressure: 3,300 PSI (227 bar)

Material: Chromex piston rod

Motor: 1.1 Brushless HP

Weight: 28 lb (13 kg) Stand

Gun: Contractor PC

Certification: Intertek

Region: USA

Specifications

Cycles Per Gallon	700
Fluid Outlet Size (in)	1/4
Fluid Outlet Thread Type	NPSM
Frame Configuration	Lo-Cart
Includes	Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip, 1/4 in x 50 ft BlueMax II Airless Hose, RAC X HandTite Tip Guard, TSL Throat Seal Liquid – 4 oz
Maximum Flow Rate (GPM)	0.54
Maximum Fluid Working Pressure (psi)	3300
Maximum Tip Size (in)	0.023
Maximum Working Pressure (MPa)	22.8
Maximum Working Pressure (psi)	3300
Minimum Generator Power (W)	3000
Model	Ultra
Overall Height (in)	22.2
Overall Length (in)	25.3
Overall Width (in)	19.8
Series	450
Sound Power Level (dB(A))	100
Sound Pressure Level (dB(A))	90
Type	Airless Sprayer
Voltage (V)	120
Weight (lb)	63
Wetted Material	Zinc and Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane

Features

LCD Display for easy monitoring

SmartControl pressure control system

FastFlush cleaning feature

Watchdog pump protection

Easy out filter (60 mesh)

ProConnect replacement system

Applications

Professional painting contractors

Medium to large painting projects

Interior and exterior applications

Compatible Equipment

Ultra 450 Corded system

RAC X LP 517 swivel

Contractor PC airless gun

Blue Max II Airless Hose

25F506 – Ultra 450 Electric Airless Sprayer, Stand, 3300 PSI

Related Parts

25F501 – Ultra 390 Corded Stand

25F502 – Ultra 390 Corded Hi-Cart

25T804 – Ultra 390 Cordless Stand

25T805 – Ultra 390 Cordless Hi-Cart

25F503 – Ultra 395 Corded Stand

25F504 – Ultra 395 Corded Lo-Cart

25F505 – Ultra 395 Corded Hi-Cart

25F506 – Ultra 450 Corded Stand

25F508 – Ultra 450 Corded Hi-Cart

Kit Contents

control board

mounting screws

This is the Lo-Cart configuration of the Ultra 450 Corded model. Uses replacement pump 190873 and repair kit 186260. Power source is corded for continuous operation. This is the Lo-Cart configuration of the Ultra 450 model for the USA market with 120V power and Intertek certification This is control board part number 2007956 which is compatible with sprayer model 25F507. Model 450, 100-120 VAC. Control board kits contain control board and mounting screws.

Reference Manuals

3J0719EN (Page 5) ENAP

X020252 (Page 4)

X021328 (Page 2)
