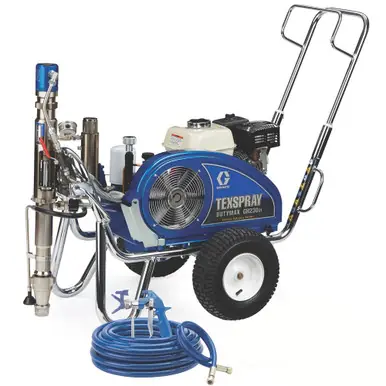

GRACO 24W943 – DutyMax GH 230 HD 3-in-1 Standard Series Convertible Gas Hydraulic Airless Sprayer

GRACO 24W943 – DutyMax GH 230 HD 3-in-1 Standard Series Convertible Gas Hydraulic Airless Sprayer

Genuine GRACO replacement dutymax gh 230 hd 3-in-1 standard series convertible gas hydraulic airless spray.

When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax 230DI sprayer to get the job donefast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

Gracos Standard Series of DutyMax gas hydraulic direct-immersion sprayers deliver everyday reliability and performance while easily handling the widest range of tip sizes, longer hose lengths more heavy duty materials such as plasters, elastomerics, fire retardants and liquid roofing solutions.

Endurance Pump

The Most Reliable Pump

Lasts 2X longer than the next brand

Better spraying performance and fast cleaning

Long Life ceramic and stainless steel balls included for maximum versatility

MaxFlo 2 with Pack-Out Protection

Less Pack-Out, More Productivity

Self-cleaning Vibra-Seal Technology eliminates material build-up

Continuous spraying with True Pack-Out Protection for more productivity

Optimized fluid passageways for the heaviest coatings

High-Efficiency Hydraulic Motor

Finish Jobs Faster

Fast, responsive changeover

Less maintenance and longer life with fewer moving parts

100% O-Ring sealed fittings prevent leaks

High-Capacity Cooling System

Reduced Downtime

Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation

Easier and more thorough fluid changes

Reservoir cooling fins deflect more heat

Honda® GX Engine

Reliable, Powerful & Easy-to-Start

Oil Alert shuts down engine to prevent damage if oil level drops too low

Easy Out Pump Filter

Easy Maintenance & Less Clogging

Large filtering area for easier cleaning & fewer tip clogs ensure a quality finish

Wont collapse or get stuck with inside out filtering process

Heavy-Duty Prime Valve

High-Pressure Dumping Capability

Maintenance-free design

Durable Cart Design

Rugged and Easy-to-Maneuver

Withstands the tough jobsite conditions while absorbing impacts and vibrations

Retractable handle doubles as coiled hose storage

Electric Motor Capability

Indoor & Outdoor Use

Quickly swap the gas engine for an electric motor in seconds, without tools

Electric motor sold separately

Specifications

Compatible Electric Motor Kits	248949, 248950 (CSA)
Compatible Material	Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Convertible	Yes
Engine Brand	Honda
Engine Size (HP)	6.5
Engine Size (kW)	4.8
Features	Endurance Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible
Fluid Inlet Size (in)	1-5/16
Fluid Inlet Thread Type	UN-2A
Fluid Outlet Size (in)	3/8
Fluid Outlet Thread Type	NPT
Frame Configuration	Cart
Hose Inlet Diameter (in)	3/8
Includes	Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
Material Application	Paints, Primers
Maximum Flow Rate (GPM)	2.35
Maximum Hose Length (ft)	50
Maximum Sound Pressure Level (dB(A))	80
Maximum Tip Size (in)	0.053
Maximum Working Pressure (psi)	3300
Model	TexSpray DutyMax
Number of Guns	1
Outlet Paint Filter	60 Mesh Stainless Steel Screen
Overall Height (in)	35.5
Overall Length (in)	47.7
Overall Width (in)	26.5
Power Rating (HP)	6.5
Power Rating (kW)	4.8
Power Source	Gas Hydraulic
Pump Mount Type	QuikChange
Pump Rod Type	Hard Chrome
Pump Sleeve Material	Hardened SST
Pump Type	Endurance
Recommended Annual Usage	100-200 gallons per week
Series	GH 230DI
Standards Met	CE Certified
Type	Airless Sprayer
Weight (lb)	203
Compatible Electric Motor Kits	248949, 248950 (CSA)
Compatible Material	Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Convertible	Yes
Engine Brand	Honda
Engine Size (HP)	6.5
Engine Size (kW)	4.8
Features	Endurance Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible
Fluid Inlet Size (cm)	3.33
Fluid Inlet Thread Type	UN-2A
Fluid Outlet Size (cm)	0.9525
Fluid Outlet Thread Type	NPT
Frame Configuration	Cart
Hose Inlet Diameter (cm)	0.95
Includes	Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
Material Application	Paints, Primers
Maximum Flow Rate (L/min)	8.9
Maximum Hose Length (m)	15
Maximum Sound Pressure Level (dB(A))	80
Maximum Tip Size (cm)	0.1346
Maximum Tip Size (mm)	1.3462
Maximum Working Pressure (bar)	227
Maximum Working Pressure (kPa)	2270
Model	TexSpray DutyMax
Number of Guns	1
Outlet Paint Filter	60 Mesh Stainless Steel Screen
Overall Height (cm)	90
Overall Height (mm)	901.7000
Overall Length (cm)	121
Overall Length (mm)	1211.58
Overall Width (cm)	67
Overall Width (mm)	673.1000
Power Rating (HP)	6.5
Power Rating (cc)	200
Power Rating (kW)	4.8
Power Source	Gas Hydraulic
Pump Mount Type	QuikChange
Pump Rod Type	Hard Chrome
Pump Sleeve Material	Hardened SST
Pump Type	Endurance
Recommended Annual Usage	100-200 gallons per week
Series	GH 230DI
Standards Met	CE Certified
Type	Airless Sprayer
Weight (kg)	92

Reference Manuals

300722 DUTYMAX HD 3-IN-1 STANDARD

334606 DutyMax EH/GH 230/300, DH230 Hydraulic Sprayers, Operation
