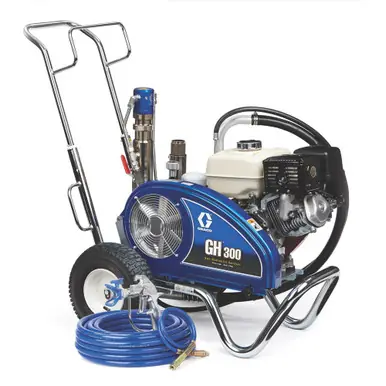

GRACO 24W935 – GH 300 Standard Series Gas Hydraulic Airless Sprayer

GRACO 24W935 – GH 300 Standard Series Gas Hydraulic Airless Sprayer

Genuine GRACO replacement gh 300 standard series gas hydraulic airless sprayer.

The GH 300 is one of the most powerful hydraulic sprayers for high production contractors who are spraying a wide range of materials including latex, elastomerics, and block fillers on large commercial jobs.

Endurance Chromex Piston Pump

Lasts 2X longer than the next leading brand

QuikChange pump design allows you to swap the pump easily on the job

Faster cleaning with the QuikAccess intake foot valve

High-Efficiency Hydraulic Motor

Rock-solid performance time after time keeps you up and running

Faster, more responsive changeover

O-Ring sealed fittings and form-fitted hydraulic lines prevent leaks

Fewer moving parts mean less maintenance and longer life

High-Capacity Cooling System

Innovative design allows the pump to run cooler and more efficiently

Hydraulic reservoir is tapered on the bottom

Provides easier and more thorough fluid changes

Cooling fins on reservoir deflect heat away from sprayer

Honda® Engine

Reliable, powerful & easy-to-start

Oil Alert shuts down engine to prevent damage if oil level drops too low

Contractor Preferred

Easy Out Pump Filter

Easy maintenance & less clogging

Exclusive inside-out filter design won’t collapse to ensure a quality finish

Vertical design for less mess

Heavy-Duty Prime Valve

Maintenance-free design withstands high-pressure dumping

Rugged, Durable Cart Design

Thick chrome over welded steel withstands rugged environments

Full pneumatic wheels absorb impacts and vibrations

Retractable handle doubles as coiled hose storage

Tilts on its nose for service in the field

Ready to Work
Includes everything you need to get spraying:

Silver Plus Airless Spray Gun

RAC X SwitchTips and Guard

50 feet of BlueMax II Airless Hose

Specifications:

Compatible Material	Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump	24W997
Construction	Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Convertible	No
Engine Brand	Honda
Engine Size (HP)	9.0
Features	Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design
Fluid Inlet Size (in)	1-5/16
Fluid Inlet Thread Type	UN-2A
Fluid Outlet Size (in)	3/8
Fluid Outlet Thread Type	FNPT
Frame Configuration	Cart
Includes	Silver Plus Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
Maximum Flow Rate (GPM)	3
Maximum Hose Length (ft)	300
Maximum Sound Pressure Level (dB(A))	96
Maximum Tip Size (in)	0.057
Maximum Tip Size 1 Gun (in)	0.057
Maximum Tip Size 2 Guns (in)	0.039
Maximum Tip Size 3 Guns (in)	0.033
Maximum Tip Size 4 Guns (in)	0.029
Maximum Tip Size 5 Guns (in)	0.025
Maximum Working Pressure (MPa)	22.8
Maximum Working Pressure (psi)	3300
Model	GH
Number of Guns	5
Outlet Paint Filter	Easy Out
Overall Height (in)	41.0
Overall Length (in)	48
Overall Width (in)	24
Power Rating (HP)	9.0
Power Rating (W)	6711
Power Rating (kW)	6.71
Power Source	Gas Hydraulic
Product Series	Standard
Pump Mount Type	QuikChange
Pump Rod Type	Chromex
Pump Sleeve Material	Stainless Steel
Pump Type	Endurance
Recommended Annual Usage	Up to 1,000 gallons per week
Series	300
Type	Airless Sprayer
Weight (lb)	195

Reference Manuals

344383 Gas Airless Sprayers

334558 GH 130/200/230/300 Hydraulic Sprayers, Operation
