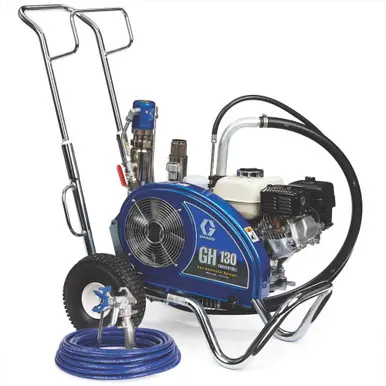

GRACO 24W923 – GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer

GRACO 24W923 – GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer

Genuine GRACO replacement gh 130 convertible standard series gas hydraulic airless sprayer.

GRACO 24W923 GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer
The GH 130 Convertible is the clear choice for entry level contractors who demand maximum power in a small package. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.

Endurance Chromex Piston Pump

Lasts 2X longer than the next leading brand

QuikChange pump design allows you to swap the pump easily on the job

Faster cleaning with the QuikAccess intake foot valve

High-Efficiency Hydraulic Motor

Rock-solid performance time after time keeps you up and running

Faster, more responsive changeover

O-Ring sealed fittings and form-fitted hydraulic lines prevent leaks

Fewer moving parts mean less maintenance and longer life

High-Capacity Cooling System

Innovative design allows the pump to run cooler and more efficiently

Hydraulic reservoir is tapered on the bottom

Provides easier and more thorough fluid changes

Cooling fins on reservoir deflect heat away from sprayer

Honda® Engines

Reliable, powerful & easy-to-start

Oil Alert shuts down engine to prevent damage if oil level drops too low

Contractor Preferred

Easy Out Pump Filter

Easy maintenance & less clogging

Exclusive inside-out filter design won’t collapse to ensure a quality finish

Vertical design for less mess

Heavy-Duty Prime Valve

Maintenance-free design withstands high-pressure dumping

Rugged, Durable Cart Design

Thick chrome over welded steel withstands rugged environments

Full pneumatic wheels absorb impacts and vibrations

Retractable handle doubles as coiled hose storage

Tilts on its nose for service in the field

Electric Motor Capability

Indoor and outdoor use

Quickly swap the gas engine for an electric motor in seconds without tools

Electric motor kit sold separately

Ready to Work
Includes everything you need to get spraying:

Contractor Airless Spray Gun

RAC X SwitchTips and Guard

50 feet of BlueMax II Airless Hose

Specifications

Specifications

Compatible Electric Motor Kits	288473, 288474 (CSA)
Compatible Material	Acrylics, Paint, Primer
Compatible Replacement Pump	24B748
Convertible	Yes
Engine Brand	Honda
Engine Size (HP)	4
Features	Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible
Fluid Inlet Size (in)	3/4
Fluid Inlet Thread Type	MNPT
Fluid Outlet Size (in)	3/8
Fluid Outlet Thread Type	FNPT
Frame Configuration	Cart
Includes	Contractor Gun, RAC X LTX 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Maximum Flow Rate (GPM)	1.30
Maximum Hose Length (ft)	300
Maximum Sound Pressure Level (dB(A))	88
Maximum Tip Size (in)	0.037
Maximum Tip Size 1 Gun (in)	0.037
Maximum Tip Size 1 Gun – Electric Motor (in)	0.031
Maximum Tip Size 2 Guns (in)	0.023
Maximum Tip Size 2 Guns – Electric Motor (in)	0.017
Maximum Working Pressure (MPa)	22.8
Maximum Working Pressure (psi)	3300
Model	GH
Number of Guns	2
Outlet Paint Filter	Easy Out
Overall Height (in)	39.5
Overall Length (in)	41
Overall Width (in)	24
Power Rating (HP)	4.0
Power Rating (W)	2982.8
Power Rating (kW)	2.98
Power Source	Gas Hydraulic
Pump Mount Type	QuikChange
Pump Rod Type	Chromex
Pump Sleeve Material	Stainless Steel
Recommended Annual Usage	Up to 500 gallons per week
Series	130
Type	Airless Sprayer
Weight (lb)	155
Wetted Material	Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Electric Motor Kits	288473, 288474 (CSA)
Compatible Material	Acrylics, Paint, Primer
Compatible Replacement Pump	24B748
Convertible	Yes
Engine Brand	Honda
Engine Size (HP)	4
Features	Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible
Fluid Inlet Size (cm)	1.905
Fluid Inlet Size (mm)	19.05
Fluid Inlet Thread Type	MNPT
Fluid Outlet Size (cm)	0.375
Fluid Outlet Size (mm)	3.75
Fluid Outlet Thread Type	FNPT
Frame Configuration	Cart
Includes	Contractor Gun, RAC X LTX 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Maximum Flow Rate (L/min)	4.9
Maximum Hose Length (m)	92
Maximum Sound Pressure Level (dB(A))	88
Maximum Tip Size (cm)	0.094
Maximum Tip Size (mm)	0.9398
Maximum Tip Size 1 Gun (cm)	0.094
Maximum Tip Size 1 Gun (mm)	0.9398
Maximum Tip Size 2 Guns (cm)	0.0584
Maximum Tip Size 2 Guns (mm)	0.5842
Maximum Working Pressure (MPa)	22.8
Maximum Working Pressure (bar)	228
Maximum Working Pressure (kPa)	22800
Model	GH
Number of Guns	2
Outlet Paint Filter	Easy Out
Overall Height (cm)	100.3
Overall Height (mm)	1003
Overall Length (cm)	104.1
Overall Length (mm)	1041
Overall Width (cm)	61
Overall Width (mm)	610
Power Rating (HP)	4.0
Power Rating (W)	2982.8
Power Rating (cc)	120
Power Rating (kW)	2.98
Power Source	Gas Hydraulic
Pump Mount Type	QuikChange
Pump Rod Type	Chromex
Pump Sleeve Material	Stainless Steel
Recommended Annual Usage	Up to 500 gallons per week
Series	130
Type	Airless Sprayer
Weight (kg)	70
Wetted Material	Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

Reference Manuals

344383 Gas Airless Sprayers

334558 GH 130/200/230/300 Hydraulic Sprayers, Operation
