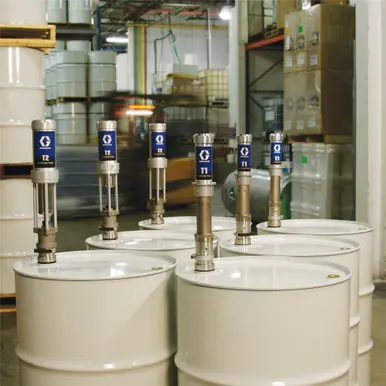

GRACO 247955 – T1 Complete Package Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply

GRACO 247955 Complete T1 Supply Pump System with 2:1 Pressure Ratio

Graco’s family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

Ideal for moving A and B materials to Reactor spray machines.

Provide consistent feed pressures and flow rates for dependable results

Lower pressure drops with higher viscosity materials at any ambient temperature

Designed and manufactured by the worldwide leader in pump technology

Longer lasting pump – designed for durability with less maintenance

Quick-release bung adapter for easy drum removal without interference from hose connections

Stainless steel wetted parts for corrosion-resistance

PTFE seals for improved performance and less maintenance

Compatible Equipment

T1 Transfer Pump systems

GRACO T1 2:1 Transfer Pumps

55 gallon drums

GRACO T1 pump systems

T1 pump systems

GRACO fluid handling equipment

Related Parts

256200 – GRACO T1 2:1 Transfer Pump

247956 – Two GRACO T1 2:1 Transfer Pumps and 3 m x 19 mm supply hose

247956 – Two GRACO T1 2:1 Transfer Pumps and 10 ft x 3/4 in supply hose

246375 – Complete Husky 716 supply pump system

246376 – Complete Husky 1040 supply pump system

246081 – Complete T2 supply pump system

Reference Manuals

300767 (Page 3) T1/T2/T3/T4 Transfer Pumps

338788 (Page 2) T1 and T2 Transfer Pump Flyer

339221 (Page 7) Reactor IP – In-Plant Polyurethane Foam Processing Systems

349104 (Page 16) Reactor Parts and Accessories Brochure

309815 (Page 2) Reactor Feed Pump Kits, Operation and

Specifications

Air Inlet Size (in)	1/4
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Application	Industrial
Compatible Material	Polyurethane Materials
Cycles Per Gallon	40
Fluid Outlet Size (in)	1/2
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPT
For Use With	Reactor Proportioner
Material	Stainless Steel
Maximum Air Inlet Pressure (MPa)	1.2
Maximum Air Inlet Pressure (psi)	180
Maximum Continuous Cycle Rate (CPM)	100
Maximum Flow Rate (GPM)	2.5
Maximum Operating Temperature (°F)	180
Maximum Working Pressure (MPa)	2.5
Maximum Working Pressure (psi)	360
Pump Ratio	2:1
Seal Material	PTFE
Sound Power Level (dB(A))	96.8
Sound Pressure Level (dB(A))	88.7
Type	Pneumatic Piston Pump
Weight (lb)	18.5
Wetted Material	Carbon Steel, Nylon, Neoprene
