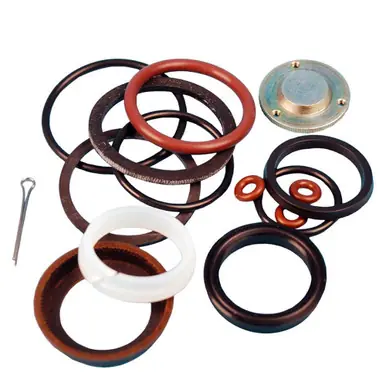

GRACO 247431 – Repair Kit, fits 1 1 Fast-Ball Pumps

GRACO 247431 – Fastball Series E Repair Kit

Fast-Ball Repair Kit designed for maintaining the durable Fast-Ball pump series used for onboard lower volume and short-run transfers of petroleum and synthetic based oils. Essential maintenance kit to ensure reliable fluid flow and smooth pumping operation.

Features

Repair kit for durable Fast-Ball pump series

Supports continuous duty in challenging applications

Maintains less pump wear through in-line design with fewer moving parts

Enables flexible use with both petroleum and synthetic-based oils

Part of ready-to-use pump system

Applications

Onboard lower volume oil transfers

Short-run transfers of petroleum-based oils

Short-run transfers of synthetic-based oils

Marine and industrial fluid transfer applications

Compatible Equipment

Fast-Ball pump series

685438, Model 222051 Series E Universal Pump, Model 222103 Series E 55 Gallon Drum Bung-Mount Pump, Model 222104 Series E 275 Gallon Tank Bung-Mount Pump, Model 685438 Series E Universal Pump, PTFE Cup

Related Parts

222308 – Bung adapter

222118 – Connection hose kit (4.5 m – 14.76 ft)

222119 – Connection hose kit (1.8 m – 5.9 ft)

162871 – Cup Packing

154662 – Packing O-Ring

Kit Contents

116152 – Piston Cup (can be discarded when servicing pump 685438)

162989 – GASKET

158109 – GASKET

185428 – WIPER

110247 – SEAL

626767 – O-RING, nitrile rubber

156641 – O-RING, buna-N

This repair kit is part of the Fast-Ball pump accessory line designed for light-duty oil and grease pump applications. The Fast-Ball series is rated for continuous duty and features an in-line design for reduced maintenance. Fast-Ball Repair Kit 247431 is available for best results, use all the parts in the kit. Cup Packing Part No. 162871 and Packing O-Ring Part No. 154662 are required for servicing pump Model 685438. Piston Cup Part No. 116152 (included in Fast-Ball Repair Kit 247431) can be discarded when servicing pump 685438. Parts included in Kit 247431 (purchase separately) – appears to be a repair/service kit for Series E pumps

Reference Manuals

300787 (Page 40) Maritime Equipment

307906 (Page 9) 1:1 Ratio Fast-Ball Pumps

406672 (Page 1) 247431 Repair Kit for 1:1 Fast-Ball Pumps, US English
