GRACO 244681 – Husky 515 Dual Inlet Bulk Antifreeze & Windshield Solvent Transfer Package, 100 PSI

GRACO 244681 – Husky 515 Dual Inlet Bulk Anti-Freeze & Windshield Solvent Transfer, 100 PSI

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.

No mechanical seals to cause fluid leaks or failures

Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels

Easy-to-service air valve and ball checks

Operates on as little as 20 PSI (1.4 bar, 0.14 MPa)

Split manifold option to pump multiple fluids without mixing

Delivery up to 15 gpm (56.7 lpm)

Reliable air valve for years of dependable performance

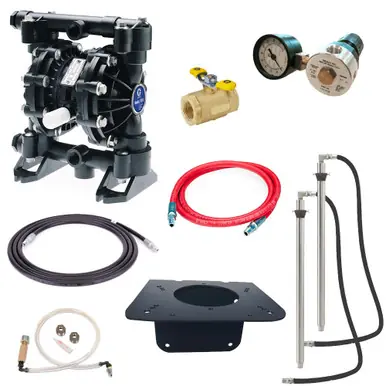

Kit Includes:

GRACO 243669 – Husky 515 Air-Operated Double Diaphragm Transfer Pump for 50/50 Windshield

GRACO 110147 – 1/4″ NPT Air Regulator & Gauge

GRACO 109105 – 3/4″ x 6ft Hose 2250 PSI

GRACO 109125 – Air Connection Hose 1/4″ NPT(M) x 6ft

GRACO 110223 – Bleed-Type Air Shut-Off Valve, 1/4″ NPT

GRACO 224835 – Wall Mounting Bracket

GRACO 236054 – 6′ Suction Kit for 55 Gal. Drums (2 kits)

GRACO 238428 – Thermal Relief Kit

GRACO 309353 – Instruction Manual

Additional Specifications

Max Working Pressure: 100 PSI (0.7 MPa, 7 bar) Maximum Air Working Pressure, 100 PSI (0.7 MPa, 7 bar) Maximum Fluid Working Pressure

Model Type: Air-Operated Double Diaphragm Bulk Transfer Package

Inlet Type: Dual Inlet

Application	Industrial
Compatible Material	Antifreeze, Windshield Washer Fluid
Fluid Inlet Size (in)	3/4
Fluid Inlet Thread Gender	Female
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	1/2
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPT
For Use With	Anti-Freeze, Windshield Solvent
Includes	AODD Pump, Air Regulator, Fluid Connect Hose, Air Connect Hose, Air Shut-Off Valve, Wall Mount Bracket, Suction Kit, Thermal Relief Kit
Inlet Thread Gender	Female
Inlet Thread Type	NPT
Material	Acetal, Buna-N
Maximum Air Pressure (psi)	100
Maximum Cycle Rate (CPM)	400
Maximum Flow Rate (GPM)	15
Maximum Fluid Pressure (MPa)	0.7
Maximum Fluid Pressure (psi)	100
Maximum Solid Size (in)	0.09375
Series	515
Type	Diaphragm Pump Package

Compatible Equipment

Husky 515 Air-Operated Dual Inlet Diaphragm Pump

Related Parts

244680 – Husky 1050 Single Inlet Bulk Antifreeze & Windshield Solvent Transfer Package

244682 – Husky 716 Single Inlet Antifreeze & Windshield Solvent Transfer Package

647016 – Husky 1050 Air-Operated Double Diaphragm Transfer Pump 1″ AL/TPE for Water, Antifreeze & Fuel Transfer

241906 – Husky 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation/Transfer, Water, Antifreeze, Windshield Wash Fluid

244844 – Air Regulator to Control Pump Speed & Pressure, 1/2″ NPT, 0-200 PSI Gauge

110147 – Zinc Air Pressure Regulator w/ Gauge, 1/4″ NPT, 0-125 PSI (0-8.6 Bar)

238428 – Thermal Relief Kit, 150 to 180 PSI (1.03 to 1.4 MPa, 10.3 to 14 Bar)

156684 – Adapter Union Fitting, 1/2 NPT Rigid to 1/2 NPT Swivel

156823 – Airless Union Fitting, 1/4″ NPT(M) x 1/4″ NPSM(F), 5000 PSI (345 Bar

For dispensing non-corrosive and non-abrasive oils and lubricants only. For professional use only. Not approved for use in European explosive atmosphere locations. Related manual: 309204 – Husky 515 Air-Operated Dual Inlet Diaphragm Pump This is referenced as part 1 in the assembly diagram. The manual indicates there are related manuals on page 1. Model 244681 requires thermal relief kit (238428) and bushing (100081) to be installed at center fluid outlet port of pump.

Reference Manuals

309353 (Page 1) Air-Operated Double Diaphragm Bulk Transfer Packages
