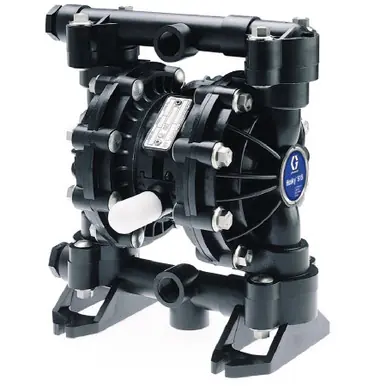

GRACO 243669 – Husky 515 Air-Operated Double Diaphragm Transfer Pump, Acetal Split Inlet,

GRACO 243669 Husky 515 Series Air-Operated Double Diaphragm Transfer Pump for 50/50 Windshield Wash Solution, Water, Antifreeze

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.

No mechanical seals to cause fluid leaks or failures

Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels

Easy-to-service air valve and ball checks

Operates on as little as 20 psi (1.4 bar, 0.14 MPa)

Split manifold option to pump multiple fluids without mixing

Delivery up to 15 gpm (56.7 lpm)

Easy-to-service air valve and ball checks

Reliable air valve for years of dependable performance

Compatible Equipment

Husky 515 Series Air-Operated Double Diaphragm Transfer Pump

244681 – Husky 515 Dual Inlet Bulk Anti-Freeze & Windshield Solvent Transfer

Related Parts

25U241 – Air Section Repair Kit

111920 – General purpose grease, 16 – diaphragm shaft u-cup, 1 – pilot pin o-ring, 11 – center housing, 12 – gasket

106 – screws

113 – air cover

114 – air cover, 13 – exhaust cover

Reference Manuals

309204 (Page 1) Husky 515 Air-Operated Dual Inlet Diaphragm Pump

309353 (Page 2) Air-Operated Double Diaphragm Bulk Transfer Packages

Specifications:

Air Exhaust Port Size (in)	3/8
Air Exhaust Port Thread Gender	Female
Air Exhaust Port Thread Type	NPT
Air Inlet Size (in)	1/4
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Application	Industrial
Ball Material	Buna-N
Compatible Material	Water, Antifreeze, Windshield Washer Fluid
Diaphragm Material	Buna-N
Fluid Section Material	Acetal
For Use With	Oil, Water, Anti-freeze, Washer Fluid
Manifold O-Ring Material	PTFE
Material	Acetal
Maximum Air Consumption (SCFM)	28
Maximum Air Pressure (MPa)	0.7
Maximum Air Pressure (psi)	100
Maximum Cycle Rate (CPM)	400
Maximum Flow Rate (GPM)	15
Maximum Fluid Pressure (MPa)	0.7
Maximum Fluid Pressure (psi)	100
Maximum Solid Size (in)	0.09375
Overall Height (in)	10.63
Power Source	Air
Pump Ratio	1:1
Type	Pneumatic Diaphragm Pump
Weight (lb)	7.8
Wetted Material	Groundable Acetal, Buna-N, PTFE
