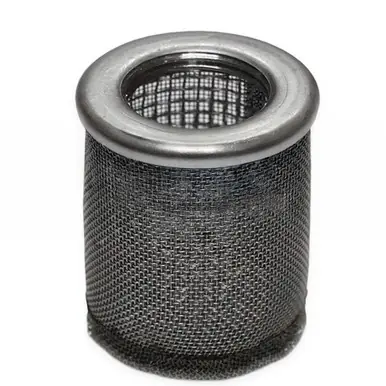

GRACO 20397- 01 – Filter, Mesh, 24, 1″ NPT

GRACO 20397- 01 – Filter, Mesh, 24, 1″ NPT

Specifications

Thread: 1 in. NPT

Gauge: 24

Mesh Size: 24

Compatible Equipment

GAM-268-01 Material Pick-Up Kit

Resin Supply Hose system 16M736

Related Parts

20394-00

20395-00

20398-02

20397-03 (50 mesh)

20397-02 (100 mesh)

24P094 – HOSE,COUPLED,72L,1ID,1NPT,SST

197682 – Suction Tube

114967 – Pipe Coupling, 1″ NPT

195151 – Intake Tube

122639 – Swivel, 1Npsx3/4″ NPT, Ff, Ms, 3K, SS

This is a component part of the GAM-268-01 Material Pick-Up Kit assembly, quantity 1 required Other filter meshes available: 50 mesh (20397-03), 100 mesh (20397-02). Apply pipe sealant to all non-swiveling pipe threads.

Reference Manuals

3A1909 (Page 41) MCG, Multi-Color Gel-Coat System

3A2012 (Page 67) FRP Proportioner

3A4527 (Page 51) 2K-WR Proportioner Instructions-Parts
