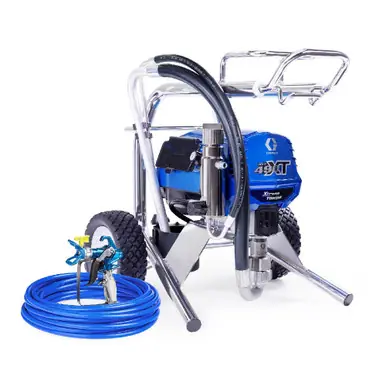

GRACO 19D520 – Ultra 490 XT Electric Airless Sprayer, Lo-Boy

GRACO 19D520 – Ultra 490 XT Electric Airless Sprayer, Lo-Boy

Specifications

Electrical Rating: 110-120 V, 50-60 Hz

Region: North America

Approval Mark: ETL US Intertek

Configuration: Lo-Boy

Voltage: 100/120 VAC

Compatible Equipment

Ultra 490 XT

Kit 20B427 (Control Board Kit)

Kit 20B426 (Coil Kit)

Related Parts

19D519 – Ultra 490 XT Stand

826284 – Ultimate 490 XT Stand

826285 – Ultimate 490 XT Lo-Boy

826286 – Ultimate 490 XT Hi-Boy

19D521 – Ultra 490 XT Electric Airless Sprayer, Hi-Boy, 3300 PSI

19D522 – Ultra 495 XT Electric Airless Sprayer, Stand

19D523 – Ultra 495 XT Electric Airless Sprayer, Lo-Boy

19D524 – Ultra 495 XT Electric Airless Sprayer, Hi-Boy

19D525

This is the Lo-Boy configuration of the Ultra 490 XT model for North American electrical standards This appears to be a sprayer model number in an accessories and labels compatibility table. The model uses power cord 20B420 and has associated front label 19D734 and side label 19D738. Related to other 19D5xx series sprayer models. This sprayer model is compatible with both control board kit 20B427 (100/120 VAC) and coil kit 20B426 (110/120 VAC). It appears in the same model group as other 19D5xx series sprayers and 20B3xx series models.

Reference Manuals

3J0719EN (Page 5) ENAP

3A9095 (Page 4) Operation, Parts, 490 XT, 495 XT, 595 XT, and 650 XT Electric Airless Sprayers

3B0142 (Page 2) Control Board Replacement

3B0151 (Page 2) Power Cord Replacement Kit
