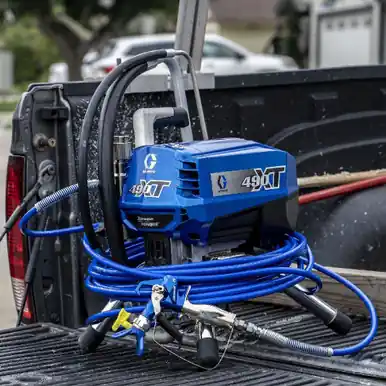

GRACO 19D519 – Ultra 490 XT Electric Airless Sprayer, Stand, Chromex piston rod, 3300 PSI

GRACO 19D519 – Ultra 490 XT Electric Airless Sprayer, Stand, Chromex piston rod, 3300 PSI

Professional-grade electric airless sprayer designed for high-volume commercial and industrial applications. Features advanced Endurance Vortex pump technology with Chromex piston rod for extended durability and performance in demanding spray environments.

Specifications

Flow Rate: 0.7 GPM (2.6 LPM)

Max Working Pressure: 3,300 PSI (227 bar)

Material: Chromex piston rod with Endurance Vortex pump

Maximum Tip Size: 0.025 in

Motor: 1.3 Xtreme Torque

Weight: 31 lb (14 kg) Stand

Hose: 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless Hose

Power Source: Corded

Airless Gun: Contractor PC

Switch Tip: RAC X LP 517

Electrical Rating: 110-120 V, 50-60 Hz

Approval Mark: ETL US Intertek

Region: North America

Configuration: Stand

Features

Endurance Vortex pump technology for extended life

Chromex piston rod for superior durability

ProConnect replacement system for easy maintenance

Rapid-Response pressure control

Selectable performance modes

Bright LED display (optional)

Applications

High-volume commercial painting

Industrial coating applications

Professional contractor use

Heavy-duty spray applications

Compatible Equipment

Contractor PC airless gun

RAC X LP 517 switch tip

Blue Max II Airless Hose

Ultra 490 XT

Related Parts

190520 – Lo-Cart configuration

190521 – Hi-Cart configuration

190873 – Replacement pump

17C487 – Repair kit

19D520 – Ultra 490 XT Lo-Boy

19D521 – Ultra 490 XT Hi-Boy

19D525 – Ultra 490 XT Stand (EMEA)

19D526 – Ultra 490 XT Hi-Boy (EMEA)

19D531 – Ultra 490 XT Stand (Australia/New Zealand)

19D535 – Ultra 490 XT Stand (Japan/Taiwan)

Stand configuration model in the Ultra 490 XT series. Part of GRACO’s midsize electrics line for professional applications. This is the North American model of the Ultra 490 XT in stand configuration This appears to be a sprayer model number in an accessories compatibility table. Compatible accessories include: Power Cord 20B420, Front Label 19D734, Side Label 19D738

Reference Manuals

344387 (Page 6) 2025 New Products Guide

3J0719EN (Page 4) ENAP

3A9095 (Page 4) Operation, Parts, 490 XT, 495 XT, 595 XT, and 650 XT Electric Airless Sprayers

3B0142 (Page 2) Control Board Replacement

3B0151 (Page 2) Power Cord Replacement Kit
