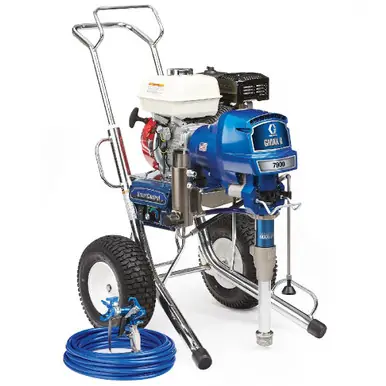

GRACO 17E836 – GMAX II 7900 Standard Series Gas Airless Sprayer Hi-Boy, 3300 PSI

GRACO 17E836 – GMAX II 7900 Standard Series Gas Airless Sprayer Hi-Boy, 3300 PSI

GMAX II 7900 Standard Series gas airless sprayer delivering unmatched performance and reliability for handling the widest range of tip sizes, long hose lengths, and heavy coatings with ease. Features the most reliable Endurance Piston Pump with 2X longer life, SmartControl technology for consistent spray fan and pressure control, and rugged cart design for jobsite durability.

Specifications

Flow Rate: 0.54 GPM

Max Working Pressure: 3300 PSI maximum

Material: Chrome hardened piston pump with exclusive hardened MaxLife sleeve and rod

Pump Type: Endurance

Engine: Honda GX

Repack Frequency: 6X longer between repacks

Maximum Tip Size: 0.035

Engine Hp: Honda: 120 (4.0) / Kohler: 179 (6.0)

Weight: 109 lbs

Gun Support Max: 3 guns

Control Type: SmartControl

Rod Type: Chrome

Sleeve Type: Hardened SST

Removal Type: QuickChange

Max Tip: 0.048

Features

Endurance MaxLife Piston Pump lasts 3X longer than competition

Easy Out Pump Filter for faster cleaning and less mess

QuikChange pump design allows cartridge swap in the job

Consistent spray fan and pressure control with SmartControl technology

Precision Advantage Drive for extremely quiet operation

Oil Alert engine protection system

Applications

Residential painting projects

Commercial coating applications

Heavy coating applications

Wide range of tip sizes and hose lengths

Professional contractor use

Professional painting contractors

Compatible Equipment

Contractor PC Gun with RAC X LP SwitchTip

50 ft Blue Max II Hose

RAC X LP517 SwitchTip

RAC X LP 517 SwitchTip

1/4 in x 50 ft hose (6.4 mm x 15 m)

Honda or Kohler engines

Related Parts

17E525 – GMAX II 5400 Standard

17E527 – GMAX II 5900 Standard

17E531 – GMAX II 5900 Standard

17E834 – GMAX II 7900 Lo-Boy, 17E525K – GMAX II 5400 Kohler, 17E527K – GMAX II 5900 Kohler, 17E531K – GMAX II 5900 Kohler, 17E535K – GMAX II 7900 Kohler

17E826 – GMAX II 3900 Standard

17E828 – GMAX II 3900 ProContractor

This is the Honda engine version of the GMAX II 7900 Standard Series. Complete ready-to-spray package included with sprayer components. Part of the GMAX II 3900 series family. Gas-powered sprayer model availability dependent on local emissions regulations. Part of GMAX II Standard Series with Honda GX engine option. Backed by 3 year warranty with reliable, powerful & easy-to-start engine featuring low oil protection.

Reference Manuals

344383 (Page 6) Gas Airless Sprayers

3J0288EN – A (Page 2)

3A6400 (Page 1) GMAX 3400, GMAX II 3900/5900/7900, and TexSpray 5900HD/7900HD Airless Sprayers

3A6417 (Page 1) GMAX 3400, GMAX II 3900/5900/7900, and TexSpray 5900HD/7900HD Airless Sprayers, Parts
