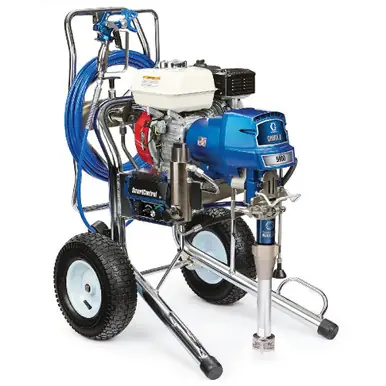

GRACO 17E832 – GMAX II 5900 ProContractor Series Gas Airless Sprayer, 3300 PSI

GRACO 17E832 – GMAX II 5900 ProContractor Series Gas Airless Sprayer, 3300 PSI

GMAX II 5900 HD ProContractor gas-powered airless paint sprayer designed for professional contractors. Features a 200cc engine displacement with 6.0 LPM flow rate and 227 bar (3300 PSI) maximum pressure. Equipped with MaxLife piston rod and sleeve for durability, plus Vortex ProConnect 2 system. Comes ready to spray with professional-grade accessories including SmartControl 3.0, WatchDog, gun with HandTite RAC X guard, and complete accessory package.

Specifications

Flow Rate: 6.0 LPM (1.6 GPM)

Max Working Pressure: 227 bar (3300 PSI)

Max Tip Size: 0.043 inch

Engine Displacement: 200 cc

Pump Type: Paint (HD Texture)

Weight: 139 lbs

Hose Size: 1/4 inch x 15 m (3/8 inch x 15 m)

Whip Hose: 1/4 inch x 0.9 m

Model: GMAX II 5900

Series: ProContractor

Maximum Tip Size: 0.043

Engine: Honda or Kohler Available

Gun Support: 0.043, 0.029, 0.023

Features

HD 3-IN-1 ProContractor design

MaxLife piston rod and sleeve for extended durability

Vortex ProConnect 2 system

Paint HD Texture pump capability

Contractor PC HD Blue Texture gun included

Ready to spray – fully assembled

Applications

Professional painting and coating

Heavy duty texture applications

Commercial and residential projects

High-volume spray applications

Professional contractor use

Professional contracting work

Compatible Equipment

RAC X tip extensions

Contractor PC guns

TexSpray guns

Various professional accessories

RAC X LP SwitchTip systems

Related Parts

17E828 – GMAX II 3900

17E837 – GMAX II 7900 HD

17E840 – GMAX II 5900 HD (alternate)

17E842 – GMAX II 7900 HD (alternate)

17E828 – GMAX II 3900 ProContractor

17E837 – GMAX II 7900 ProContractor

17E369 – HARNESS,PWR,18AWG,IEC,C13,LOCKING

17E826 – GMAX II 3900 Standard Series Gas Airless Sprayer Lo-Boy, Chromex Piston

17E829 – GMAX II 5900 Standard Series Gas Airless Sprayer Lo-Boy, Endurance Chromex Piston, 3300 PSI

17E833 – GMAX II 5900 IronMan Series Gas Airless Sprayer, 3300 PSI

Kit Contents

GMAX II 5900 HD sprayer unit

Contractor PC HD Blue Texture gun

SmartControl 3.0

WatchDog system

Vortex ProConnect 2

Gun with HandTite RAC X guard and tips

BlueMax hose

TSL 0.25 litre

197193 universal hammer tool

111733 adjustable wrench

Blue tool box

Part of the GMAX II (HD 3-IN-1) ProContractor series. Ships complete and ready to spray. This is the 5900 HD model with enhanced texture capabilities. Part of the GMAX II ProContractor Series designed for speed and performance to help contractors get to the next jobsite faster and increase profits. This is a pre-packaged cart design model in the GMAX II 5900 ProContractor series with Honda or Kohler engine options available.

Reference Manuals

300719 (Page 4) GMAX (HD 3-IN-1) ProContractor

344383 (Page 4) Gas Airless Sprayers

3A6400 (Page 1) GMAX 3400, GMAX II 3900/5900/7900, and TexSpray 5900HD/7900HD Airless Sprayers

3A6417 (Page 1) GMAX 3400, GMAX II 3900/5900/7900, and TexSpray 5900HD/7900HD Airless Sprayers, Parts
