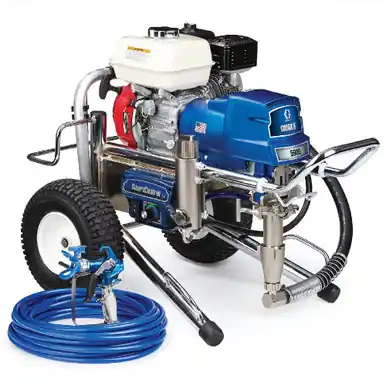

GRACO 17E829 – GMAX II 5900 Standard Series Gas Airless Sprayer Lo-Boy, Endurance Chromex Piston,

GRACO 17E829 – GMAX II 5900 Standard Series Gas Airless Sprayer Lo-Boy, Endurance Chromex Piston, 3300 PSI

GMAX II 5900 Standard Series Lo-Boy Gas Airless Sprayer designed for everyday reliability with unmatched durability and performance. Features the most reliable pump with Endurance Chromex Piston technology that lasts 3X longer than leading brands, easy maintenance design with less clogging, and consistent spray fan pressure control for professional results.

Specifications

Flow Rate: 1.6 gpm

Max Working Pressure: 3300 PSI (22.8 MPa, 228 bar) Maximum Working Pressure

Material: Endurance Chromex Piston

Configuration: Lo-Boy

Series: Standard Series

Engine Type: Gas

Maximum Tip Size: 0.043

Maximum Psi: 3300

Weight: 139 lbs

Engine Cc Hp: Honda: 200 (6.0), Kohler: 208 (6.5)

Control Type: SmartControl

Gun Support: 0.043, 0.029, 0.023

Pump Type: Endurance

Rod Type: Chrome

Sleeve Type: Hardened SST

Removal Type: QuikChange

Model: GMAX II 5900

Application: architectural paints and coatings

Use: professional use only

Features

Endurance Chromex Piston Pump lasts 3X longer than leading brands

Easy Out Pump Filter for faster cleaning and less mess

QuikChange pump design allows pump swap in minutes

Consistent spray fan and pressure control with SmartControl

Maintenance-free high-pressure ducting with Heavy-Duty Prime Valve

Rugged cart design with thick chrome over steel frame

Applications

Professional painting contractors

Widest range of tip sizes and coatings

Longer hose lengths applications

Heavier coatings with ease

Professional painting contracting

Medium to large spray projects

Compatible Equipment

Contractor PC Gun with RAC X LP SwitchTip

50 ft Blue Max II Hose

RAC X LP517 SwitchTip

Honda or Kohler engines

0.043 maximum tip size

RAC X LP 517 switch tip system

Related Parts

17E525 – GMAX II 5400 Standard

17E327 – GMAX II 5900 Standard

17E331 – GMAX II 5900 Standard

17E336 – GMAX II 7900 Standard

17E534 – GMAX II 7900 Lo-Boy

17E826 – GMAX II 3900 Standard

17E832 – GMAX II 5900 ProContractor

17E833 – GMAX II 5900 IronMan

17E834 – GMAX II 7900 Lo-Boy

17E837 – GMAX II 7900 ProContractor

Lo-Boy configuration model in the GMAX II Standard Series lineup. Complete ready-to-spray unit with Contractor PC Spray Gun, 50 ft Blue Max II Hose and RAC X LP517 SwitchTip included. Part of the GMAX II 5900 series with multiple configuration options including Standard, ProContractor, and IronMan variants For professional use only. Not approved for use in European explosive atmosphere locations. Related manual: Honda Engine Manual 3A6417

Reference Manuals

344383 (Page 6) Gas Airless Sprayers

3A6400 (Page 1) GMAX 3400, GMAX II 3900/5900/7900, and TexSpray 5900HD/7900HD Airless Sprayers

3A6417 (Page 1) GMAX 3400, GMAX II 3900/5900/7900, and TexSpray 5900HD/7900HD Airless Sprayers, Parts
