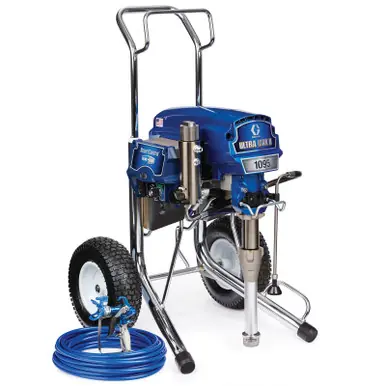

GRACO 17E583 – Ultra Max II 1095 Standard Series Electric Airless Sprayer, Hardened SST, 3000 PSI

GRACO 17E583 – Ultra Max II 1095 Standard Series Electric Airless Sprayer, Hardened SST, 3000 PSI

The GRACO Ultra Max II 1095 Standard Series Electric Airless Sprayer delivers professional-grade performance with a maximum tip size of 0.035″ and pressures up to 3000 PSI. This endurance-rated sprayer features hardened SST construction and weighs 120 lbs standard, making it ideal for demanding commercial and industrial coating applications.

Specifications

Flow Rate: 1.20 GPM

Max Working Pressure: 3000 PSI

Material: Hardened SST

Max Tip Size: 0.035

Series: Ultra Max II 1095

Maximum Tip Size: 0.035″

Weight: 120 lbs Standard

Motor Type: Endurance

Rod Type: Chrome

Sleeve Type: Hardened SST

Removal Type: QuikChange

Voltage: 120

Nema: 5-15

Certification: ETL Intertek

Model Series: 1095

Configuration: Standard Hi-Boy

Features

Endurance Chromex Piston Pump – lasts 2X longer than competing pumps

QuikPak Cartridge System for pump repacking in minutes

QuikChange pump design for easy pump swapping on the job

Faster cleaning with QuikAccess intake foot valve

New Contractor PC Spray Gun – lightest weight in class

Up to 50% lighter trigger pull force with E-Z Fit adjustable trigger length

Applications

Large commercial projects

Industrial contracting

Continuous painting in challenging conditions

Long-duration projects with large material volumes

Beyond jobsite tough applications

Commercial painting projects

Compatible Equipment

IRONMAN Series sprayers

RAC X LP 517 tip guard

Contractor PC Gun

BlueLink Management App

Ultra Max II 1095

Related Parts

17E572 – Ultra Max II 695

17E574 – Ultra Max II 795

17E589 – Ultra Max II 1595

17E577 – Ultra Max II 695 ProContractor

17E579 – Ultra Max II 795 Standard

17E582 – Ultra Max II 795 ProContractor

17E585 – Ultra Max II 1095 ProContractor

17E586 – Ultra Max II 1095 IronMan

17E589 – Ultra Max II 1595 Standard

17E596 – Ultra Max II 1595 ProContractor

Part of the IRONMAN Series designed for extreme durability and reliability in demanding commercial/industrial applications This is the standard series model in the Ultra Max II 1095 family. Replacement parts include pump (3A6584), repair kit (17R638), rod (24B207), sleeve (24B210), intake seal kit (24T199), and operation/parts manual (3A6342). This is a complete electric airless sprayer unit in Standard Hi-Boy configuration, part of the Ultra Max II 1095 series. Related parts include ProContractor (17E585) and IronMan (17E586) versions of the same model, as well as Ultimate MX II variants (826227-826229).

Reference Manuals

344381 (Page 8) Electric Sprayers

3A6342 (Page 5) 695 / 795 / 1095 / 1595 / Mark IV HD / Mark V HD / Mark VII HD / Mark X HD Electric Airless Sprayers, Operation, Parts
