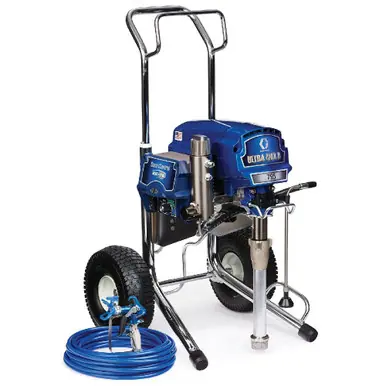

GRACO 17E579 – Ultra Max II 795 Standard Series Electric Airless Sprayer, Chrome rod, 3300 PSI

GRACO 17E579 – Ultra Max II 795 Standard Series Electric Airless Sprayer, Chrome rod, 3300 PSI

The GRACO Ultra Max II 795 Standard is a professional electric airless sprayer designed for medium-duty painting applications. Features endurance pump technology with hardened stainless steel components for maximum durability and consistent performance. Equipped with comprehensive electronic controls including BluLink management app, SmartControl, and WatchDog protection systems.

Specifications

Flow Rate: 1.10 GPM

Max Working Pressure: 3300 PSI maximum

Material: Chrome rod with hardened SST sleeve

Maximum Tip Size: 0.033

Weight: 98 lbs (Standard)

Tip Support 1 Gun: 0.033

Tip Support 2 Guns: 0.025

Tip Support 3 Guns: 0.019

Motor: 2.0 HP MaxPower Brushless DC

Pump Type: Endurance

Removal System: QuikChange

Voltage: 120

Electrical Standard: NEMA 5-15

Model Series: Ultra Max II 795

Configuration: Standard Hi-Boy

Features

Endurance pump with hardened stainless steel components

2.0 HP MaxPower Brushless DC Motor

QuikChange pump removal system

BluLink Management App connectivity

SmartControl electronic system

WatchDog protection system

Applications

Medium-duty professional painting

Multi-gun spraying operations

Commercial painting projects

Residential painting applications

Compatible Equipment

RAC X LP 517 spray tips

Multiple gun configurations (up to 3 guns with appropriate tip sizing)

Ultra Max II 795

Related Parts

17E577 (Ultra Max II 695 ProContractor)

17E582 (Ultra Max II 795 ProContractor)

17E583(Ultra Max II 1095 Standard)

17E585 (Ultra Max II 1095 ProContractor)

17E586 (Ultra Max II 1095 IronMan)

17E589 (Ultra Max II 1595 Standard)

17E596 (Ultra Max II 1595 ProContractor)

17E594 (Ultra Max II 1595 IronMan)

17E582 – Ultra Max II 795 ProContractor Series Electric Airless Sprayer

Part of the Ultra Max II series with multiple tip size support depending on number of guns used. Features comprehensive electronic monitoring and control systems for professional applications. This is a complete airless sprayer unit in Standard Hi-Boy configuration for 120V NEMA 5-15 electrical systems

Reference Manuals

344381 (Page 8) Electric Sprayers

3A6342 (Page 4) 695 / 795 / 1095 / 1595 / Mark IV HD / Mark V HD / Mark VII HD / Mark X HD Electric Airless Sprayers, Operation, Parts
