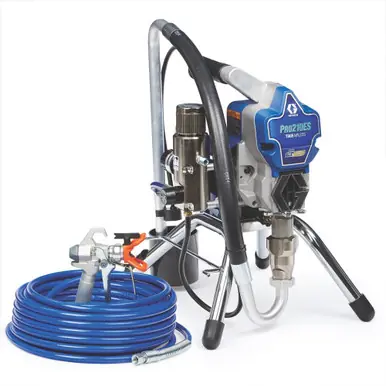

GRACO 17D163 – Pro210ES Stainless Steel Stand Electric Airless Sprayer, 3000 PSI (207 Bar)

GRACO 17D163 Pro210ES Electric Airless Sprayer, Stand

Painting contractors and remodelers choose the Pro210ES for tackling jobs like rental and residential properties and small commercial buildings. The proven Endurance pump delivers maximum life and supports a .021-inch tip to spray heavier materials and hot solvents such as solvent-based lacquer.

The ProConnect System allows you to replace the pump on the job, eliminating downtime and keeping you spraying while extending the life of the sprayer. The welded, chrome-plated steel frame enhances durability on the jobsite.

Endurance Pump– Maximum life and reparability required by professionals

ProConnect Pump Replacement System– Quickly replace worn out pump and eliminate downtime

DuraDC Motor– Delivers longest life and supports longer extension cords

Lightweight Design– Offset rubber-grip handle that kicks the sprayer away from the body while carrying

Chrome Plated Stand– Easy to clean and durable

Flexible Suction Hose– Spray directly from 1 or 5 gallon containers with swivel hose

SG3 Metal Spray Gun– Premium spray gun with hose swivel making it easy to manage longer hose lengths

TrueAirless Spray Tip with SoftSpray Technology– greater control and less overspray with a wide range of coatings

Easy Out Pump Filter– Added filtration reduces downtime and delivers a higher quality finish

QuickAccess Inlet Valve– Allows removal of any debris to eliminate downtime

Compatible Equipment

SG3 Metal Spray Gun with 50 ft DuraFlex Paint Hose

Various RAC IV SwitchTips

GRACO professional spray guns and accessories

514 spray tips

Solvent-based lacquers

Hot solvents

Reference Manuals

344038 (Page 4) Product Guide Sprayers and Accessories

344066 (Page 10) Magnum & TrueCoat 360 Product Guide

344088 (Page 1) Magnum Pro 210 ES TrueAirless

3J0425EN (Page 10)

334659 (Page 1) 210 ES Electric Airless Sprayers

Specifications

Amperage (A)	13
Compatible Replacement Pump	17C721
Compatible Tip Size (in)	0.009, 0.011, 0.013, 0.015, 0.017, 0.019, 0.021
Engine Size (HP)	1.0
Fluid Outlet Size (in)	1/4
Fluid Outlet Thread Type	NPSM
Frame Configuration	Stand
Includes	SG3 Spray Gun, TrueAirless 515 Spray Tip, Tip Guard, 1/4 in x 50 ft DuraFlex Hose, TSL 4 oz, Quick Start-Up Guide
Maximum Flow Rate (GPM)	0.47
Maximum Sound Pressure Level (dB(A))	90
Maximum Tip Size (in)	0.021
Maximum Tip Size 1 Gun (in)	0.021
Maximum Working Pressure (MPa)	20.7
Maximum Working Pressure (psi)	3000
Minimum Generator Power (W)	3000
Model	Graco
Motor Type	DC
Outlet Paint Filter	60 Mesh Stainless Steel Screen
Overall Height (in)	18.5
Overall Length (in)	16
Overall Width (in)	14
Phase	1
Power Rating (HP)	1.0
Power Rating (W)	745.7
Power Rating (kW)	0.75
Power Source	Electric
Pressure Control Type	Mechanical Pressure Control
Pump Mount Type	ProConnect
Pump Rod Type	Chromex
Pump Sleeve Material	Hardened Steel
Pump Type	Endurance
Series	Pro210ES
Standards Met	Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, ETL Listed, NOM-003-SCFI, NMX-J-521/1
Type	Airless Sprayer
Voltage (V)	120
Volume Per Cycle (cycles/gal)	700
Weight (lb)	34
Wetted Material	Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Amperage (A)	13
Compatible Replacement Pump	17C721
Engine Size (HP)	1.0
Fluid Outlet Size (cm)	0.635
Fluid Outlet Size (mm)	6.35
Fluid Outlet Thread Type	NPSM
Frame Configuration	Stand
Includes	SG3 Spray Gun, TrueAirless 515 Spray Tip, Tip Guard, 1/4 in x 50 ft DuraFlex Hose, TSL 4 oz, Quick Start-Up Guide
Maximum Flow Rate (L/min)	1.8
Maximum Sound Pressure Level (dB(A))	90
Maximum Tip Size (cm)	0.0533
Maximum Tip Size (mm)	0.5334
Maximum Tip Size 1 Gun (cm)	0.0533
Maximum Tip Size 1 Gun (mm)	0.5334
Maximum Working Pressure (MPa)	20.7
Maximum Working Pressure (bar)	207
Maximum Working Pressure (kPa)	20700
Minimum Generator Power (W)	3000
Model	Graco
Motor Type	DC
Outlet Paint Filter	60 Mesh Stainless Steel Screen
Overall Height (cm)	47
Overall Height (mm)	470
Overall Length (cm)	40.6
Overall Length (mm)	406
Overall Width (cm)	35.6
Overall Width (mm)	356
Phase	1
Power Rating (HP)	1.0
Power Rating (W)	745.7
Power Rating (kW)	0.75
Power Source	Electric
Pressure Control Type	Mechanical Pressure Control
Pump Mount Type	ProConnect
Pump Rod Type	Chromex
Pump Sleeve Material	Hardened Steel
Pump Type	Endurance
Series	Pro210ES
Standards Met	Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, ETL Listed, NOM-003-SCFI, NMX-J-521/1
Type	Airless Sprayer
Voltage (V)	120
Weight (kg)	15
Wetted Material	Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
