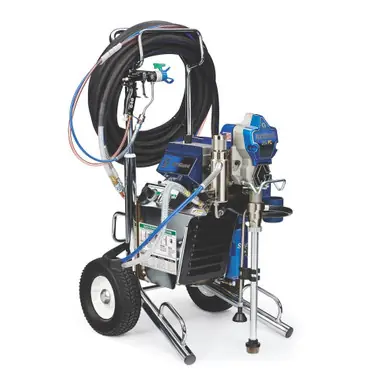

GRACO 17C417 – Finish Pro II 395 PC Electric Air-Assisted Airless Sprayer, 1500 PSI

GRACO 17C417 – Finish Pro II 395 PC Electric Air-Assisted Airless Sprayer, 1500 PSI

The GRACO FinishPro II 395 PC Electric Air-Assisted Airless Sprayer delivers HVLP quality finish at the speed of an airless sprayer. This high-performance system provides production fine finish quality with material delivered at lower pressure than traditional airless (500-1500 PSI vs 1500-3000 PSI) and partially atomized through a small tip. Full atomization is achieved by adding a small amount of air (5-35 PSI) to the edges of the spray fan, resulting in a softer pattern, more control, higher transfer, and less over spray.

With features that make a great sprayer even better, the FinishPro II 395 PC is Gracos premier solution to fine finishing. It delivers a high quality finish at a high production rate, and can handle the most challenging materials.

Includes the features and output to quickly deliver high-quality finishes.

SmartControl 1.0 with Digital Display

Increased spray performance

Consistent spray fan without pressure fluctuations at all spraying pressures

Digital display accurately shows spraying pressure

SmartComp

Compressor is activated by the gun triggerif youre not spraying, its not running!

Reduces jobsite noise, resulting in less fatigue

Automatic shut-off reduces moisture entering the system and extends compressor life

Pulling trigger delivers instant air to the gun with zero lag

Release the trigger and SmartComp shuts off the compressor after 5 seconds

Extends compressor life

Chromex Endurance Pump

The most reliable pump on the marketlasts 2 times longer than the next leading brand

Long-life V-Max Blue packings, Chromex rod and hardened stainless steel cylinder

QuikAccess intake valve for fast cleaning or debris clearing

ProConnect

Fast and easy on-the-job Pump Replacement System

1-minute jobsite replacement in 3 simple steps

Pinless design eliminates the chance of losing parts during the change-out process

High-Output On-Board Air Compressor

Ideal for on-site finish jobs

Delivers 3.2 ft³/min at 35 PSI (0.1 m³/min at 2.4 bar)enough air to break up the heaviest of materials

Exclusive Pressure Unloader results in quieter operation

Cooling coil reduces air temperature, extending the life of the critical components and providing safer operator handling

Precision-Cut RAC X FF LP SwitchTip

Less overspray and increased pump life

Sprays at lower pressures with less overspray

Pre-orifice design produces a perfect airless finish

Finer atomization and soft edges for easier overlapping

Reduces prep and cleanup

Includes solvent seal for hot solvents

G40 Spray Gun

An industrial quality air-assisted spray gun that delivers superior finishing results

Integrated air valve improves gun handling

RAC X guard included

Flat tip conversion kit included

Super-Flex Hose Set

The flexibility to get into tight spacesfocus on the task, not the tool!

Extremely lightweight in hand, which reduces fatigue

Connects directly to the gun for maximum flexibility

Flex Wrap hose skin protects from paint build up and increases hose durability

Two Sprayers in One

Select air-assisted or airless modes, depending on whats best for the application

Simple, color-coded labels easily identify airless and air-assisted airless modes with a single selector switch

Self-Contained & Portable

One plug runs the entire unit, simplifying jobsite operation

Additional Specifications

Flow Rate: 47 L (178 gpm)

Max Working Pressure: 500-1500 PSI material pressure, 5-35 PSI air assist

Gauge: .021

Transfer Efficiency: 70-80%

Durability: 2X longer lasting than next leading brand

Spray Tip Life: 2X longer than competitors

Maximum Tip Size: .021

Weight: 107 (48.5) kg/lbs

Motor Hp: 7/8 TEFC

Hose Wrap: Flex Wrap

Power Source: Corded

Amperage (A)	15
Engine Size (HP)	0.875
Frame Configuration	Cart
Gun Included	1
Includes	G40 Gun Air-Assisted Airless Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Air-Assisted Airless Guard, Fine Finish Flat Tip Kit, Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz.
Inlet Paint Strainer	100 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM)	0.47
Maximum Hose Length (ft)	50
Maximum Sound Pressure Level (dB(A))	79
Maximum Tip Size (in)	0.021
Maximum Tip Size 1 Gun (in)	0.021
Maximum Working Pressure (MPa)	22.8
Maximum Working Pressure (psi)	3300
Minimum Generator Power (W)	4000
Model	FinishPro II
Motor Type	TEFC DC
Number of Guns	1
Outlet Paint Filter	100 Mesh Stainless Steel Screen
Overall Height (in)	40.5
Overall Length (in)	32.5
Overall Width (in)	21
Phase	1
Power Rating (HP)	0.875
Power Source	Electric
Pressure Control Type	SmartControl 1.0
Pump Mount Type	ProConnect
Pump Rod Type	Chromex
Pump Type	Endurance
Recommended Annual Usage	Up to 1095 gallons per year
Series	395 PC
Spray Type	Air-Assisted Airless
Standards Met	Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, ETL Certified
Type	Air-Assisted Airless Sprayer
Voltage (V)	120
Weight (lb)	110
Wetted Material	Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel

Features

Air-assisted airless technology for superior finish quality

SmartControl with Digital Display – accurately shows spray pressure without pressure fluctuations

G40 Airless Gun with ultralight trigger pull and ergonomic fit

Endurance Piston Pump – lasts 2X longer than leading brand

Onboard Air Compressor with SmartComp delivers superior finish

ProConnect – No Tools Pump Replacement System

Applications

Production fine finish spraying

High-end finish quality applications

Projects requiring minimal overspray

Applications where finish quality and speed are both critical

Fine finishing applications

High production rate jobs

Compatible Equipment

G40 Airless Gun

Air-assisted airless tips

RAC X FF LP SwitchTip

Precision-Cut Fine Finish Flat Tip

G40 Spray Gun

RAC X FTL P210 tips

Related Parts

17E908 – Finish Pro II 595 PC Pro Electric Air-Assisted Airless Sprayer

17C924 – FinishPro GX 19 Corded

250341 – FinishPro GX 19 Cordless

17C908 – FinishPro II 595 PC PRO

Part of the FinishPro II Air-Assisted Airless Sprayer series. Features ProConnect system available on FinishPro II Models for quick pump replacement and reduced downtime. This is the complete FinishPro II 395 PC air-assisted airless sprayer system. The related part 17E908 appears to be the FinishPro II 595 PC model shown on the right side of the page. This is part of GRACO’s FinishPro II series, positioned as a high productivity air-assisted airless sprayer. The 395 PC model offers corded operation for consistent power delivery in professional applications.

Reference Manuals

344400 (Page 8) Fine finish sprayers

334598 (Page 41) FinishPro II 595 PC Pro Airless/Air-Assisted Sprayers, Operation

334730 (Page 1) FinishPro II 395 PC Airless/Air-Assisted Sprayers Operation
