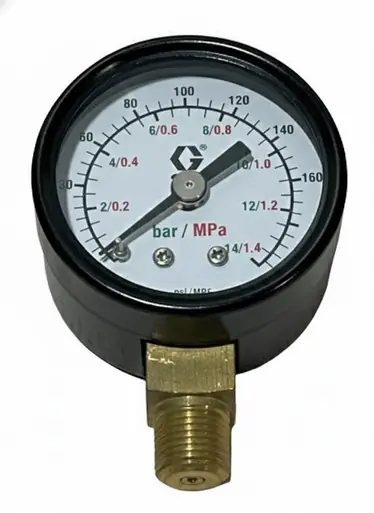

GRACO 110319 – Air Pressure Gauge, 1/8″ NPT, 300 PSI

GRACO 110319 – Air Press Gauge, 1/8″ NPT, 1/4″ NPT, 300 PSI Wpr Maximum

Pressure gauge component included in the air filter-regulator-lubricator kit designed to monitor and display air pressure in lubrication systems. Provides visual pressure monitoring to help protect and extend system component life when used in-line with LubePro equipment.

Specifications

Thread: 1/4 inch npt

Max Working Pressure: 300 psi WPR maximum

Features

Visual pressure monitoring

300 psi working pressure rating

1/4 inch NPT connection

Part of complete air preparation system

Applications

In-line system protection

Pressure monitoring for lubrication systems

Component life extension

System diagnostics

Compatible Equipment

LubePro lubrication systems

Air filter-regulator-lubricator assemblies

Part No. 253017, Series A

Part No. 207279, Series L

Part No. 241252, Series A

Part No. 241253, Series A

Related Parts

110149 – Complete air filter-regulator-lubricator kit

110146 – Air filter

110318 – Regulator

110148 – Lubricator

110318 – Air Regulator, 1/4″(F) Inlet/Outlet, 0-180 psi, Zinc Plated

This pressure gauge (110319) is included as part of the complete kit 110149 along with 20 micron air filter, regulator, and lubricator components. The kit has 1/4 inch npt inlet/outlet connections.

Reference Manuals

352376 (Page 9) LubePro Series Pumps

306934 (Page 19) Air-Powered Ram

308167 (Page 8) Low Volume Air Regulators

308169 (Page 2) Air Filters, Lubricators, and Kits

308703 (Page 13) Husky 750 and Husky 2000 Surge Suppressors
