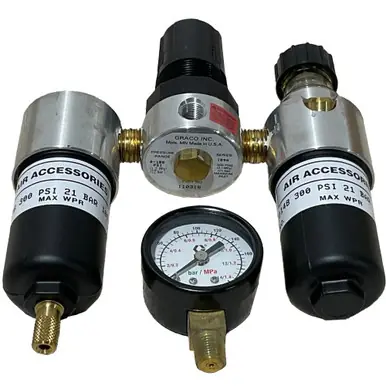

GRACO 110149 – Air Line Filter / Regulator / Lubricator, 1/4″ NPT(F), 300 PSI

GRACO 110149 – Air Line Filter, Regulator, Lubricator, 1/4″ NPT(F) Inlet/Outlet, 300 PSI

Complete air preparation kit designed to protect and extend system component life in pneumatic lubrication systems. This in-line filtration, regulation, and lubrication solution ensures clean, properly conditioned air supply for optimal equipment performance.

Specifications

Thread: 1/4 inch NPT inlet/outlet

Max Working Pressure: 300 PSI WPR maximum

Air Filter Micron Rating: 20 micron

Regulator Part: 110318

Lubricator Part: 110148

Pressure Gauge Part: 110319

Features

Complete air preparation solution in one kit

20 micron air filtration for clean air supply

Pressure regulation for consistent system operation

Built-in lubrication for extended component life

Includes pressure gauge for monitoring

Compact design for easy installation

Applications

In-line protection for pneumatic lubrication systems

Air supply conditioning

Equipment component life extension

Pneumatic system maintenance

Compatible Equipment

equipment shown in Fig. 3 installation diagram

Fas-Vac

Related Parts

224759 – Mounting Kit

Kit Contents

110146 – 20 micron air filter

110318 – regulator

110148 – lubricator

110319 – pressure gauge

Not required for operation, but recommended for protecting and extending system component life. Complete kit solution for air preparation needs. Referenced as Kit 110149 in the Air Regulation section. Installation instructions are provided on page 6 of the manual. Used for air regulation in the pumping system. Should be mounted to the Fas-Vac with the Mounting Kit (Part No. 224759). Provides proper conditioning of compressed air to help prolong pump life. The filter removes harmful dirt and moisture from compressed air, the regulator controls air to the pump and the lubricator provides automatic motor lubrication.

Reference Manuals

352376 (Page 9) LubePro Series Pumps

308154 (Page 6) Fas-Vac Evacuation System

308169 (Page 1) Air Filters, Lubricators, and Kits
