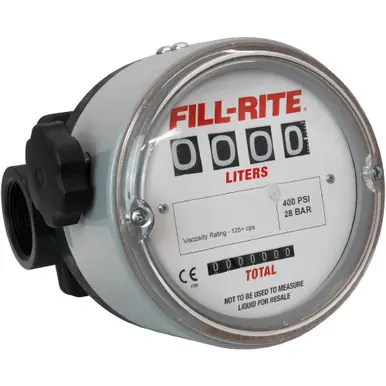

FILL-RITE TN760AN1CAB1LAF – 2.3-57 LPM 4-Digit Mechanical Fuel Transfer Meter

TN760AN1CAB1LAF 2.3-57 Lpm 4-Digit Mechanical Fuel Transfer Meter

The TN760AN1CAB1LAF is a high pressure, high viscosity, and highly accurate 4-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 2.3-57 liters per minute at +/- 2% accuracy. This model does not include additional accessories.

Features:

Reliable Technology dependable positive displacement, nutating disc technology provides trusted accuracy in non-custody transfer applications

High-Pressure Applications ideal for high-pressure automotive fluid distribution systems and lube trucks where heavy fuel oils, hydraulic oils, and lubricating oils are transferred

Durable Construction built to last with an anodized aluminum case and resin metering chamber, designed to withstand the toughest environments

Versatile Compatibility engineered with a high-pressure metering chamber for high viscosity oils and ideal for transferring heavy liquids quickly and safely

Catalog	1.5″ NPT, 57 LPM, 125+ cSt, 28 Bar, High Viscosity Lubricating Oils
Technology	Nutating Disc
Flowrate Range	4-57 LPM
Operating Temperature Range	-15 – 180°F / -26 – 82°C
Accuracy (+/- %)	0.01
Repeatibility (+/- %)	0.0025
Display Digits	4
Inlet Size (in)	1.5 “
Inlet Thread	NPT
Outlet Size (in)	1.5 “
Outlet Thread	NPT
Compatible Fluids	Gear Oils Motor Oils
Package Dimensions(in)	7.94 x 10.75 x 7.31
Gross Weight (lbs) (from SAP)	8.580 lbs
Certifications	CE
Warranty	2 Years
UPC	89404101360
