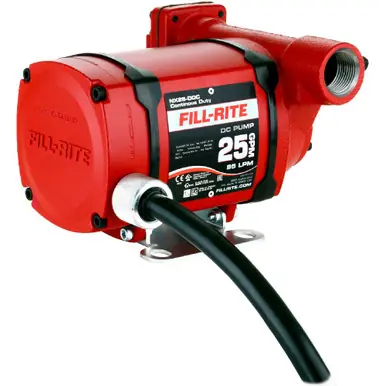

FILL-RITE NX25-DDCBF-PX – 12/24V 25 GPM Fuel Transfer Pump

NX25-DDCBF-PX 12/24V Dc 25 Gpm Fuel Transfer Pump

The NX25-DDCBF-PX model is a 12/24V DC, 25 GPM premiere fuel transfer pump. This model includes installation components and no additional accessories.

Features:

Unmatched Performance – Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment

Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Powder-Coated Exterior thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions

Reduced Maintenance Costs 75% reduction in common field repair costs through patented design and robust construction

Ultra-Lightweight pump weighs 60% less at only 25 pounds, making installation faster and strain free

Energy Efficient – Consumes up to 45% less electricity, slashing operating costs and boosting efficiency

Flexible Power Input dual voltage design allows you to power from 12-24V DC batteries without worrying of burning up the motor

Continuous Operation brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime

Specifications:

Catalog	Foot – BSPP Threads, Pump Only
Max Flowrate	25 GPM / 95 LPM
Input Voltage Range (V)	12V/24V DC
Max Current (A)	30 A
Duty Cycle (min)	Continuous Duty
Discharge Head (ft)	48 ‘
Max Discharge Pressure (PSI)	21 PSI
Suction Lift (ft)	12 ‘
Inlet Size (in)	1 “
Inlet Thread	BSPP
Outlet Size (in)	1 “
Outlet Thread	BSPP
Mounting Size
Mounting Thread
Mounting Type	Foot Mount
Meter
Filter
DischargeHose
Suction Hose	None
Swivel
Nozzle
Suction Pipe	None
Cable	3-Wire 10 GA 20′ Power Cable with Battery Clips
Compatible Fluids	Diesel Kerosene Mineral Spirits Biodiesel up to B20 Gasoline up to E15
Package Dimensions(in)	18.31 x 10.63 x 18.44
Gross Weight (lbs) (from SAP)	33.200 lbs
Certifications	cULus ATEX IECEx CE
Warranty	Limited Lifetime
UPC	89404245521
