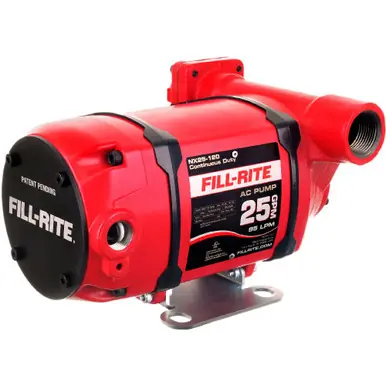

FILL-RITE NX25-120NF-PX – 120V 25 GPM Fuel Transfer Pump

NX25-120NF-PX 120V Ac 25 Gpm Fuel Transfer Pump

The NX25-120NF-PX model is a 120V AC, 25 GPM premiere fuel transfer pump. This model includes installation components and no additional accessories.

Features:

Unmatched Performance – Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment

Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Powder-Coated Exterior thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions

Reduced Maintenance Costs 75% reduction in common field repair costs through patented design and robust construction

Ultra-Lightweight pump weighs 60% less at only 25 pounds, making installation faster and strain free

Energy Efficient – Consumes up to 45% less electricity, slashing operating costs and boosting efficiency

Continuous Operation brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime

Specifications:

Catalog	Foot – Pump Only
Max Flowrate	25 GPM / 95 LPM
Input Voltage Range (V)	115V AC
Max Current (A)	3.5 A
Duty Cycle (min)	Continuous Duty
Discharge Head (ft)	48 ‘
Max Discharge Pressure (PSI)	25 PSI
Suction Lift (ft)	12 ‘
Inlet Size (in)	1 “
Inlet Thread	NPT
Outlet Size (in)	1 “
Outlet Thread	NPT
Mounting Size
Mounting Thread
Mounting Type	Foot Mount
Meter
Filter
DischargeHose
Suction Hose
Swivel
Nozzle
Suction Pipe
Cable
Compatible Fluids	Diesel Kerosene Biodiesel up to B20 Gasoline up to E15 Mineral Spirits
Package Dimensions(in)	15.44 x 11.38 x 18.31
Gross Weight (lbs) (from SAP)	28.100 lbs
Certifications	cULus
Warranty	Limited Lifetime
UPC	89404247532
