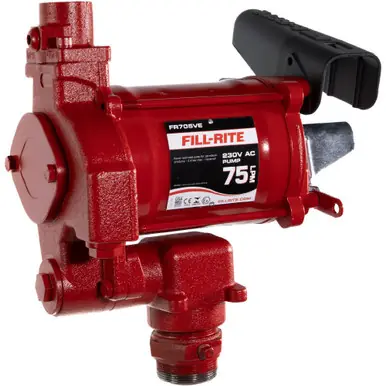

FILL-RITE FR705VE – 230V 20 GPM Fuel Transfer Pump

FR705VE 230V Ac 20 Gpm Fuel Transfer Pump

The FR705VE model is a 230V AC, 75 LPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories.

Features:

Industry Staple – our most popular AC pump that transfers fuel at 20 GPM, a tremendous entry-level option that is ideal for filling medium-sized equipment from aboveground storage tanks

Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Long Life thermally-protected motor prevents overheating, ensuring your pump withstands the test of time

Cast-Iron Construction durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications

Reliable Technology proven for over 60 years, rotary vane technology produces consistent flow performance over the entire life of your pump

Specifications:

Catalog	3/4″ – 230V, BSP Threads – Pump Only
Max Flowrate	20 GPM / 75 LPM
Input Voltage Range (V)	220V AC
Max Current (A)	2.4 A
Duty Cycle (min)	30 min on / 30 min off
Discharge Head (ft)	53 ‘
Max Discharge Pressure (PSI)	23 PSI
Suction Lift (ft)	15 ‘
Inlet Size (in)	1 “
Inlet Thread	BSPP
Outlet Size (in)	1 “
Outlet Thread	BSPT
Mounting Size	2″
Mounting Thread	BSPT
Mounting Type	Bung Mount
Meter
Filter
DischargeHose
Suction Hose
Swivel
Nozzle
Suction Pipe
Cable
Compatible Fluids	Diesel Heptane Kerosene Mineral Spirits Stoddard Solvents Gasoline up to E15 Biodiesel up to B20
Package Dimensions(in)	20.56 x 10.25 x 19.56
Gross Weight (lbs) (from SAP)	52.600 lbs
Certifications	CE ATEX IECEx INMETRO
Warranty	Limited Lifetime
UPC	89404211434
